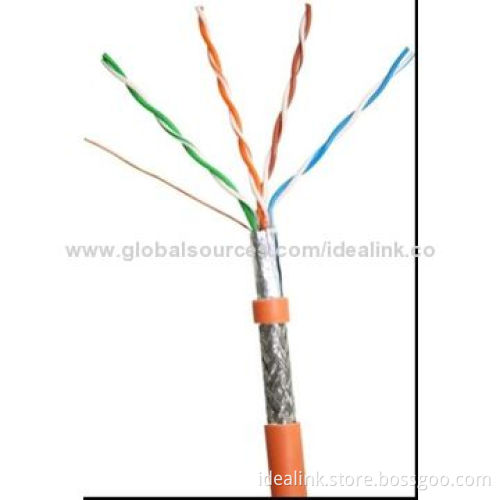

Cat5e SFTP LAN Cable with PVC/LSZH Jacket

Cat5e SFTP LAN Cable with PVC/LSZH Jacket

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Conductor diameter: 0.52mm
Average thickness (±0.03mm): 0.269mm
Minimum point thickness: 0.4mm
Insulation diameter (±0.03mm): 0.91mm
Average thickness: 0.5mm
Minimum point thickness: 0.46mm
Outer diameter (±1.00mm): 5.1mm
Rip cord: supported
Weight (normal): 32kg/km

Core colors:

Pair 1: blue white/blue
Pair 2: orange white/orange
Pair 3: green white/orange
Pair 4: brown white/brown

Electrical performance (at 100MHz):

Spark test: 850V AC
Dielectric strength: 2,500V DC/3 seconds
Insulation resistance test: 150m and Ω/km (minimum)
Conductor resistance: 9.38/100m at 20° (maximum)
Resistance unbalance: 5% (maximum)
Capacitance unbalance: 330pF/100m (maximum)
Mutual capacitance: 5,600pF/100m (maximum)

Impedance:

1,722kHz: 102 and ±15%Ω
1 to 125MHz: 100 and ±15%Ω

Applications:

1,000base-T gigabit Ethernet
100base-T, 100base-T fast Ethernet (IEEE802.3)
100VG any LAN (IEEE802.12), 155/622Mbps ATM
Voice, T1, ISDN

Conductor diameter: 0.52mm

Average thickness (±0.03mm): 0.269mm

Minimum point thickness: 0.4mm

Insulation diameter (±0.03mm): 0.91mm

Average thickness: 0.5mm

Minimum point thickness: 0.46mm

Outer diameter (±1.00mm): 5.1mm

Rip cord: supported

Weight (normal): 32kg/km

Pair 1: blue white/blue

Pair 2: orange white/orange

Pair 3: green white/orange

Pair 4: brown white/brown

Spark test: 850V AC

Dielectric strength: 2,500V DC/3 seconds

Insulation resistance test: 150m and Ω/km (minimum)

Conductor resistance: 9.38/100m at 20° (maximum)

Resistance unbalance: 5% (maximum)

Capacitance unbalance: 330pF/100m (maximum)

Mutual capacitance: 5,600pF/100m (maximum)

1,722kHz: 102 and ±15%Ω

1 to 125MHz: 100 and ±15%Ω

1,000base-T gigabit Ethernet

100base-T, 100base-T fast Ethernet (IEEE802.3)

100VG any LAN (IEEE802.12), 155/622Mbps ATM

Voice, T1, ISDN

Compliant with LAN cable standards:

All proposed Cat5e requirements as per ANSI/TIA/EIA, IEC and Cenelec EN standards
ANSI/TIA/EIA 568-B.2 Cat5e/IEC 11801 class D 2nd edition Cenelec EN 50173-1, Cenelec EN 61156-5, Cenelec EN 50288-2-1horizontal cable
Verified according to IEC 60332-1

Others:

OEM services are provided as per your requirements
Conductor: solid bare copper/CCS/CCA
AWG: 23/24
Insulation: foam PE/solid PE
Braiding: 64/96/112/128
Jacket: PVC/LSZH
Packaging type: wooden roller

All proposed Cat5e requirements as per ANSI/TIA/EIA, IEC and Cenelec EN standards

ANSI/TIA/EIA 568-B.2 Cat5e/IEC 11801 class D 2nd edition Cenelec EN 50173-1, Cenelec EN 61156-5, Cenelec EN 50288-2-1horizontal cable

Verified according to IEC 60332-1

OEM services are provided as per your requirements

Conductor: solid bare copper/CCS/CCA

AWG: 23/24

Insulation: foam PE/solid PE

Braiding: 64/96/112/128

Jacket: PVC/LSZH

Packaging type: wooden roller
