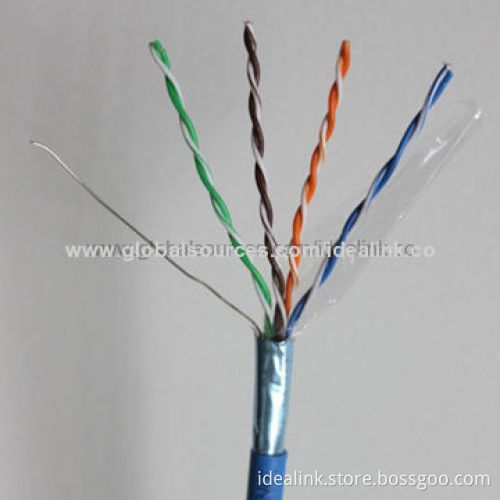

4-pair FTP LSZH Fluke Pass Cat5e Bulk Cable with CE/RoHS Mark, 1,000ft Length
  • 4-pair FTP LSZH Fluke Pass Cat5e Bulk Cable with CE/RoHS Mark, 1,000ft Length
  • 4-pair FTP LSZH Fluke Pass Cat5e Bulk Cable with CE/RoHS Mark, 1,000ft Length
4-pair FTP LSZH Fluke Pass Cat5e Bulk Cable with CE/RoHS Mark, 1,000ft Length
4-pair FTP LSZH Fluke Pass Cat5e Bulk Cable with CE/RoHS Mark, 1,000ft Length

4-pair FTP LSZH Fluke Pass Cat5e Bulk Cable with CE/RoHS Mark, 1,000ft Length

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Conductor: solid bare copper
    • AWG: 24#
    • Conductor diameter: 0.50mm
    • Insulation: PE
    • Average thickness: 0.20mm ±0.03
    • Minimum point thickness: 0.17mm
    • Insulation diameter: 0.91mm ±0.03
    • Twisting lay length: 30mm
    • Cabling lay length: 200mm
    • Jacket: LSZH
    • Average thickness: 0.5mm
    • Minimum point thickness: 0.43mm
    • Outer diameter: 5.1mm ±1.00
    • Rip cord: supported
    • Weight: 32kg/km
  • Core colors:
    • Pair 1: blue-white/blue
    • Pair 2: orange-white/orange
    • Pair 3: green-white/orange
    • Pair 4: brown-white/brown
  • Electrical performance (at 250MHz):
    • 1.0 to 100.0MHz impedance: 100© ±15
    • 100.0 to 250.0MHz impedance: 100© ±22
    • Impedance delay screw: d45ns/100m
    • Pair to ground capacitance unbalance: 330pF/100m (maximum)
    • Conductor DC resistance 20%: 93.8©/km
    • Resistance unbalance: 5%
    • Test object: jacket
    • Test material: LSZH
    • Before tensile strength: 13.8MPa
    • Aging elongation: 100%
    • Aging condition: 100 x 240c x hours
    • After tensile strength: 85%MPa of aging
    • Aging elongation: 50% of nagged
    • Cold bend (-20°C, ±2 x 4 hours): no cracking
  • Standard compliances:
    • All proposed category 5e requirement as per ANSI/TIA/EIA, IEC and CENELEC EN standards
    • ANSI/TIA/EIA 568-B.2 Cat5e
    • IEC 11801 class D 2nd edition
    • CENELEC EN 50173-1
    • CENELEC EN 61156-5, CENELEC EN 50288-2-1 horizontal cable
    • Flame-retardant is verified according to IEC 60332-1
    • Conductor: solid bare copper/CCS/CCA
    • Insulation: foam PE/solid PE
    • Jacket: PVC/LSZH
  • Applications:
    • This 4 pairs category 5e cable is tested for power sum next, ELFEXT and delay skew
    • Propagation delay and any other criteria as specified in the emerging standards
    • Applications can include voice, ISDN, ATM 155 and 622, 100MbpsTPDDI, fast and Gigabit Ethernet
    • Shielding protects against EMI/RFI interference
  • Packing: wooden roller
  • Conductor: solid bare copper
  • AWG: 24#
  • Conductor diameter: 0.50mm
  • Insulation: PE
  • Average thickness: 0.20mm ±0.03
  • Minimum point thickness: 0.17mm
  • Insulation diameter: 0.91mm ±0.03
  • Twisting lay length: 30mm
  • Cabling lay length: 200mm
  • Jacket: LSZH
  • Average thickness: 0.5mm
  • Minimum point thickness: 0.43mm
  • Outer diameter: 5.1mm ±1.00
  • Rip cord: supported
  • Weight: 32kg/km
  • Pair 1: blue-white/blue
  • Pair 2: orange-white/orange
  • Pair 3: green-white/orange
  • Pair 4: brown-white/brown
  • 1.0 to 100.0MHz impedance: 100© ±15
  • 100.0 to 250.0MHz impedance: 100© ±22
  • Impedance delay screw: d45ns/100m
  • Pair to ground capacitance unbalance: 330pF/100m (maximum)
  • Conductor DC resistance 20%: 93.8©/km
  • Resistance unbalance: 5%
  • Test object: jacket
  • Test material: LSZH
  • Before tensile strength: 13.8MPa
  • Aging elongation: 100%
  • Aging condition: 100 x 240c x hours
  • After tensile strength: 85%MPa of aging
  • Aging elongation: 50% of nagged
  • Cold bend (-20°C, ±2 x 4 hours): no cracking
  • All proposed category 5e requirement as per ANSI/TIA/EIA, IEC and CENELEC EN standards
  • ANSI/TIA/EIA 568-B.2 Cat5e
  • IEC 11801 class D 2nd edition
  • CENELEC EN 50173-1
  • CENELEC EN 61156-5, CENELEC EN 50288-2-1 horizontal cable
  • Flame-retardant is verified according to IEC 60332-1
  • Conductor: solid bare copper/CCS/CCA
  • Insulation: foam PE/solid PE
  • Jacket: PVC/LSZH
  • This 4 pairs category 5e cable is tested for power sum next, ELFEXT and delay skew
  • Propagation delay and any other criteria as specified in the emerging standards
  • Applications can include voice, ISDN, ATM 155 and 622, 100MbpsTPDDI, fast and Gigabit Ethernet
  • Shielding protects against EMI/RFI interference
