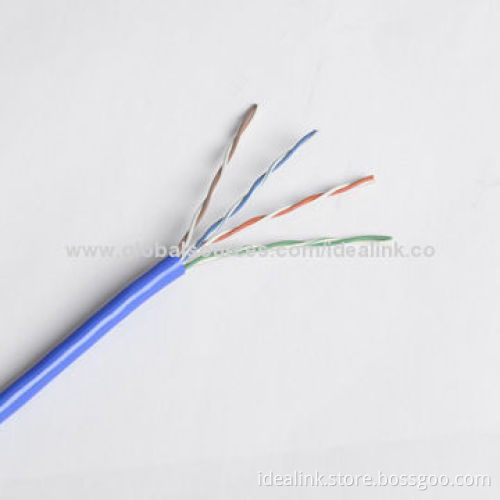

UTP Cat5e Cable with PVC and LSZH Jacket, Supports OEM, Customized Services Provided, Cu/CCS/CCA

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Electrical performance (at 250MHz):

Cable data:

Conductor: solid bare copper/CCA/CCS
AWG: 23
Diameter: 0.57mm
Insulation: PE
Average thickness: 0.24mm (±0.03mm)
Point thickness: 0.24mm (minimum)
Insulation: 1.00mm (±0.03mm)
Twisting lay length: 30mm (underneath)
Cabling lay length: 200mm (underneath)
Average thickness: 0.5mm
Minimum point thickness: 0.4mm
Outer: 6.6mm (±1.0mm)
Rip cord: supported
Weight: 60kg
Core colors:
- Pair 1: blue-white/blue
- Pair 2: orange-white/orange
- Pair 3: green-white/orange
- Pair 4: brown-white/brown

Applications:

Pots T1 and T1 fractional, ISDN basic and primary rate 4/16Mbps token ring (IEEE802.5)
10Base-T (IEEE802.3), 100Mbps TP-PMD 52/155Mbps ATM (ATM forum)
100Base-T4 (Ethernet), 100VG-any LAN (IEEE802.12)
100Base-T (fast Ethernet), 1Gbps Ethernet (IEEE802.3)

1.0 to 100.0MHz impedance: 100Ω ±15

100.0 to 250.0MHz impedance: 100Ω ±22

Impedance delay screw: d45ns/100m

Pair to ground capacitance unbalance: 330pF/100m (maximum)

Conductor DC resistance: 20%, <73.2Ω/km

Resistance unbalance: 5%

Test object: jacket

Test material: PVC

Before tensile strength: e13.8MPa

Aging elongation: e100%

After tensile strength: e85% MPa of nagged

Aging elongation: e50% of aged
