Cat5e UTP and Patch Cord, Made of PE, PVC/LSZH, OEM Orders Welcomed

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union and L/C at Sight

Product Description

Specifications:

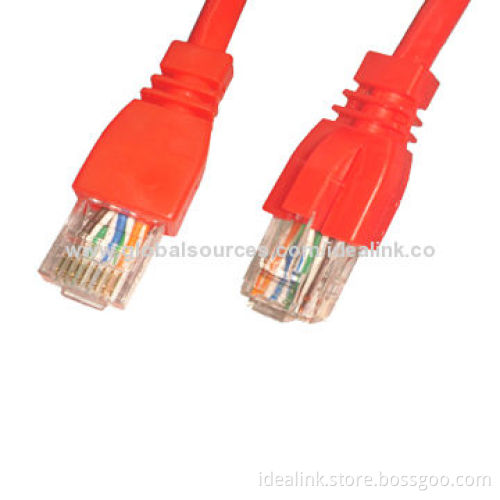

Path cord plug: unshielded RJ45 plug
Boot: FR PVC high-injection
Conductor: copper/CCA
AWG: 7 x 34 (7/0.16)/7 x 33 (7/0.18)/7 x 32AWG (7/0.2mm)
Plug: 8P8C
Materials: PE, PVC/LSZH
Nominal (OD): 5.5mm
Insulation: polyolefin
Color codes:
- Pair 1: white/blue and blue
- Pair 2: white/orange and orange
- Pair 3: white/green and green
- Pair 4: white/brown and brown
Length: 0.5, 1, 2, 3 and 5m (special length accepted by order)
Standards: Cat6 TIA/EIA-568-B-2.1, draft 9
With CE standards and the RoHS Directive-compliant
OEM orders are welcomed

Applications:

Improved attenuation provides cleaner data and video transmissions
For 1000Base-T, 100Base-TX, 155Mbps ATM and other high-speed applications
Designed for network adapters, hubs, switches, routers, DSL/cable modems and patch panels
Snag less patch cables can stay of the game with the use of this high-speed cabling to distribute data, voice and video
Handle bandwidth intensive applications up to 550MHz and be yond
Constructed with cable and a shortened body plug
Molded, snag-free boot prevents unwanted cable snags during installation and provides strain relief
Snag less patch cables are available in a variety of colors to easily color codes your network installation

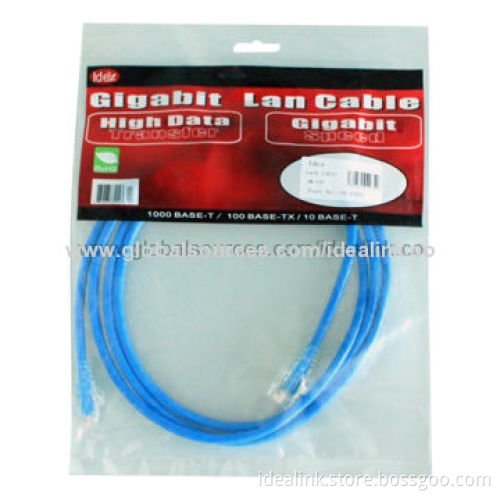

Packing type: polybag

Path cord plug: unshielded RJ45 plug

Boot: FR PVC high-injection

Conductor: copper/CCA

AWG: 7 x 34 (7/0.16)/7 x 33 (7/0.18)/7 x 32AWG (7/0.2mm)

Plug: 8P8C

Materials: PE, PVC/LSZH

Nominal (OD): 5.5mm

Insulation: polyolefin

Color codes:
