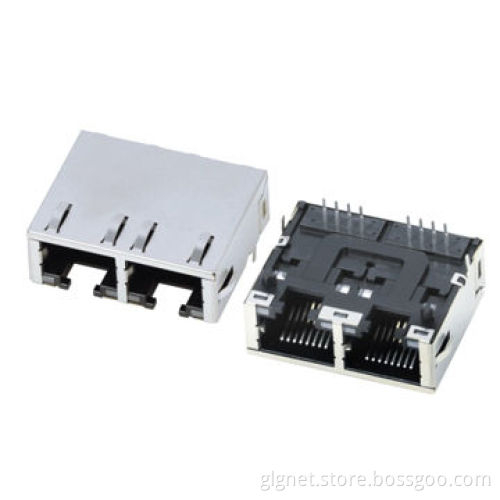

1*2 port RJ45 connector, PCB jacks, with shielding, low height, flat pin & with light pipe

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Materials:

Plating：

Electrical:

Mechanical:

Package： Tape & reel

Standard conform to: FCC, EIA, MIL, IEC & CNS

Housing: PA46,UL94V-0 & black

Contacts：C5210R-EH & 0.3mm thickness

Solder: C2680R-H & 0.25mm thickness

Shell: Brass, 0.2mm thickness

Light pipe： Clarity PC

Contact: Selective gold plated over 50-80 micro inch nickel

Solder: Plating 50-80 micro inch nickel and 80-120 micro inch nickel

Shell: Plating 50-80 micro inch nickel

Rated voltage: 125VAC rms

Rated current: 1.5A max @ 25℃

Dielectric withstanding voltage: 1,000V AC 0.5mA 60s

Insulation resistance: 500mΩ minimum @ 500VDC

Contact resistence： 40mΩ Max

Connector mating force: 30N maximum

Plug retention force: 50N min

Durability test: 750 cycles minimum

Operating temperatures: -40-85℃
