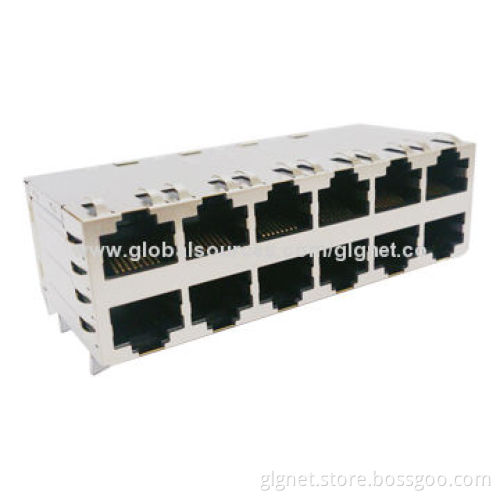

RJ45 2X6 Connector, Through Hole/PoE+, 1000Base-T/Surge Protection, Without LED with Transformer
  • RJ45 2X6 Connector, Through Hole/PoE+, 1000Base-T/Surge Protection, Without LED with Transformer
  • RJ45 2X6 Connector, Through Hole/PoE+, 1000Base-T/Surge Protection, Without LED with Transformer
  • RJ45 2X6 Connector, Through Hole/PoE+, 1000Base-T/Surge Protection, Without LED with Transformer
  • RJ45 2X6 Connector, Through Hole/PoE+, 1000Base-T/Surge Protection, Without LED with Transformer
RJ45 2X6 Connector, Through Hole/PoE+, 1000Base-T/Surge Protection, Without LED with Transformer
RJ45 2X6 Connector, Through Hole/PoE+, 1000Base-T/Surge Protection, Without LED with Transformer
RJ45 2X6 Connector, Through Hole/PoE+, 1000Base-T/Surge Protection, Without LED with Transformer
RJ45 2X6 Connector, Through Hole/PoE+, 1000Base-T/Surge Protection, Without LED with Transformer

RJ45 2X6 Connector, Through Hole/PoE+, 1000Base-T/Surge Protection, Without LED with Transformer

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Materials:
    • Housing: glass filled PA46 (black) UL94V-0 (RoHS)
    • Contact: phosphor bronze
    • Shield: 0.2mm thickness with brass
    • Jack cavity conforms to FCC rules and regulations part 68 subpart F
    • The part is recommended for wave soldering process peak, soldering temperature is 260°C maximum, 10 seconds (maximum)
  • Electrical specifications:
    • Rated voltage: 48V DC
    • Rated current: 0.1A (maximum)
    • Operating temperature: 0 to 70℃
    • Stockpile temperature: -40 to 85℃
    • Contact resistance: 20mΩ (maximum) (initial)
    • Insulation resistance: 500MΩ (minimum)
    • Dielectric withstanding voltage: 2250V DC/1mA for 1 minute
  • Mechanical:
    • Durability: 750 cycles
    • Connector mating force: 30N (maximum)
    • Plug retention force: 50N (minimum)
  • Range of applications:
    • ​Large data switchboard, router, 4G network
  • Housing: glass filled PA46 (black) UL94V-0 (RoHS)
  • Contact: phosphor bronze
  • Shield: 0.2mm thickness with brass
  • Jack cavity conforms to FCC rules and regulations part 68 subpart F
  • The part is recommended for wave soldering process peak, soldering temperature is 260°C maximum, 10 seconds (maximum)
  • Rated voltage: 48V DC
  • Rated current: 0.1A (maximum)
  • Operating temperature: 0 to 70℃
  • Stockpile temperature: -40 to 85℃
  • Contact resistance: 20mΩ (maximum) (initial)
  • Insulation resistance: 500MΩ (minimum)
  • Dielectric withstanding voltage: 2250V DC/1mA for 1 minute
  • Durability: 750 cycles
  • Connector mating force: 30N (maximum)
  • Plug retention force: 50N (minimum)
  • ​Large data switchboard, router, 4G network
