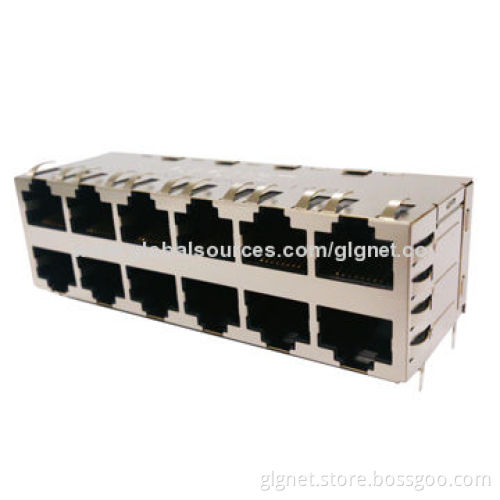

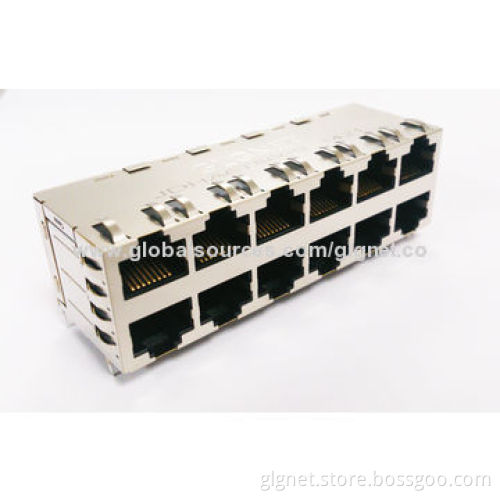

RJ45 2X6 Through Hole ,1000Base-T/Surge Protection, W/O LED, with Transformer
- Payment Type:
- Telegraphic Transfer (TT, T/T)
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | Telegraphic Transfer (TT,T/T) |
|---|
- Housing: glass filled PA46 (black) UL94V-0 (RoHS)
- Contact: Phosphor Bronze
- Shield: 0.2mm thickness with copper alloy
- Jack cavity conforms to FCC rules and regulations part 68 subpart F
- The part is recommended for wave soldering process peak, soldering temperature is 260°C maximum, 10secs max
- Rated voltage: 48 VDC
- Rated current: 0.1A Max
- Operating temperatures: 0℃ to 70℃
- Stockpile temperatures: -40℃ to 85℃
- Contact resistance: 20mΩ max. (Initial)
- Insulation resistance: 500MΩ min
- Dielectric withstanding voltages: 2250V DC/1mA for 1 minute
- Durability: 750 cycles
- Connector mating force: 30N max
- Plug retention force: 50N min
- Large data switchboard, router, 4G network
- ZTE, HUAWEI, Star-net and more
