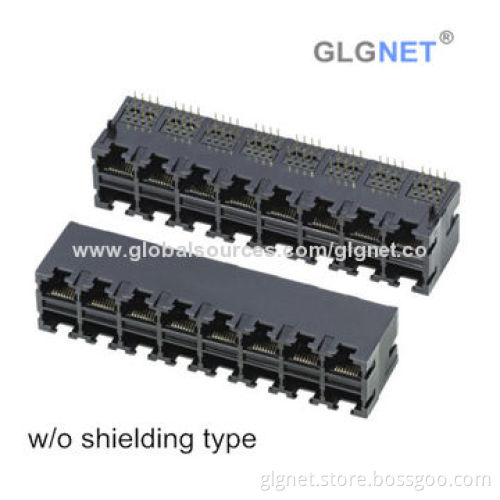

RoHS Directive-compliant RJ45 Connector, 2x8-Port, with or w/o Shielding, R/A

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Materials:

Electrical:

Mechanical:

Package:

RJ45 cavities conform to FCC rules and regulations part 68 subpart F

All the raw materials meet RoHS

Housing: glass filled PA46 black UL94V-0

Insert: glass filled PBT UL94V-0

Shielding: 0.2mm thickness copper alloy

Contact: 0.46mm diameter phosphor bronze with selective gold-plated over nickel

Rated voltage: 150V (maximum)

Rated current: 1.5A (maximum)

Dielectric withstanding voltage: 500V AC/minute

Insulation resistance: 500mΩ/minute

Connector mating force: 30N (maximum)

Plug retention force: 50N (minimum)

Durability test: 750 cycles (minimum)

Operating temperature: -40 to +85℃

Plastic tray
