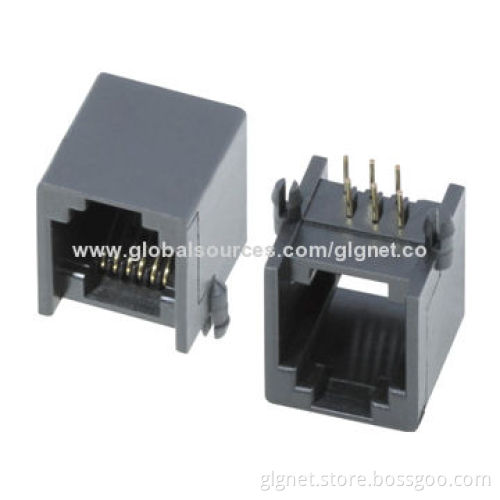

Single port 6P6C/4C/2C telephone jacks, tab up, side entry, sized 12.21mm13mm14.4mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Pins： 6P6C, 6P4C, 6P2C

Material:

Electric:

Mechanical:

Package：

Housing & insert: PBT, PA46. PA66 UL94V-0

Color: According to customer's request

Contact: Selective gold plated over nickel

Rated voltage: 150V max

Rated current: 1.5A max

Dielectric withstanding voltage: 500V AC/min

Insulation resistance: 500mΩ/min

Connector mating force: 30N/max

Plug retention force: 50N/min

Durability test: 750 cycles/min

Operating temperatures: -40 to 85℃

Plastic tray

RJ45 cavities conform to FCC rules and regulations part 68 subpart F

All the raw materials meet RoHS
