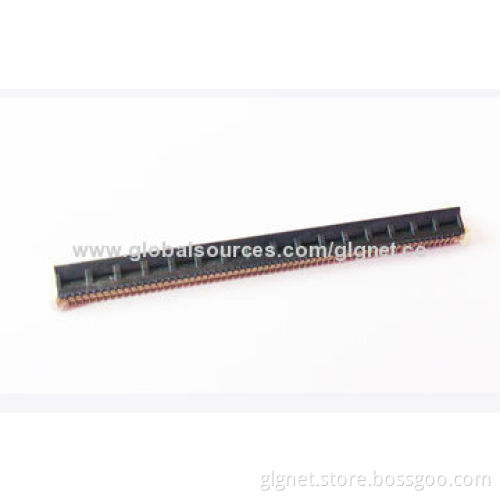

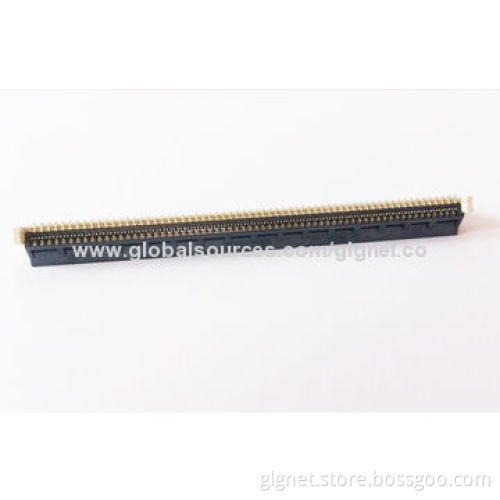

0.45mm Pitch H=2.65mm Back Easy on FFC/FPC Connector/SMT/R/A/Top Contact Type
- Payment Type:
- Telegraphic Transfer (TT, T/T)
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | Telegraphic Transfer (TT,T/T) |
|---|
- Size: 128 circuits
- For 0.30mm thick FFC/FPC connector
- Voltage: 50 V AC (rms)/DC/per pin
- Current: 1.0 A AC (rms)/DC/per pin
- Contact resistance: 100 mΩ maximum
- Dielectric withstanding voltage: 300V AC/rms
- Insulation resistance: 500MΩ min.
- Operating temperatures: -40-85℃
- Housing: High temp thermo plastic 94V-0
- Actuator: Thermoplastic, high temp
- Terminal: Copper alloy
- Housing: LCP & natural
- Actuator: LCP & black
- Tube
- Tape & reel
Related Keywords
-

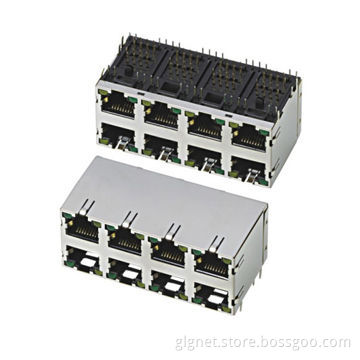

RJ45 Connectors, 2 x 6 Ports with or w/o Shielding and LED, R/A Type, 50N Plug Retention Force
RJ45 1*1 Port Connectors with Shielding, Without LED, SMT Type, 150V Rated Voltage

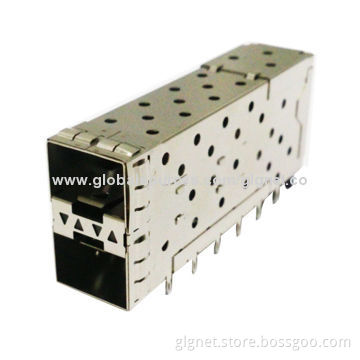

2x1 SFP+ Connector with Inner and Outer Light Pipe

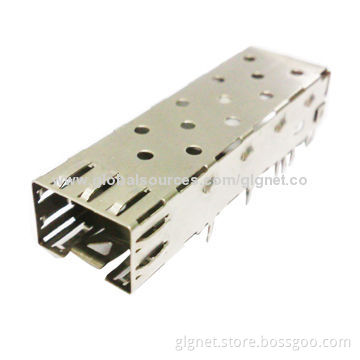

SFP Connector, 1 x 1 Shell Solder Type, 180N Module Retention
