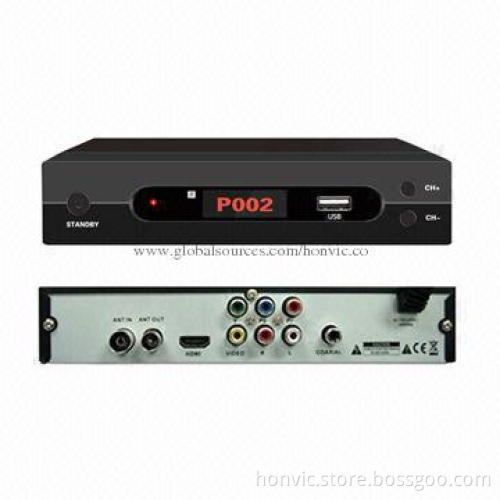

DVB-T2 Receivers with One USB2.0 and HDMI®, MPEG-4/H.264

Get Latest Price

Payment Type:: T/T, L/C, D/P or O/A

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, D/P or O/A

Product Description

Solution: Mstar7816 or ali3812

Fully DVB-T/DVB-T2, MEPG-2/4 H.264 HD/SD compliant

Compatible with 576i/576p/720p/1,080i/1,080p video formats

Auto and manually scan all available TV and radio channels

Aspect ratio 16:9 and 4:3

HDMI®, start output

Multi-language subtitle output supported

Powerful and highly effective 7-day EPG function

Supports teletext

Parental lock

PVR ready function via USB2.0 (optional)

Multimedia playback via USB2.0 (optional)

Stores up to 1,000 programs and keeps in memory while power-off

Operating temperature: 0-40°C

Input voltage: 100-240V AC, 50/60Hz

Power consumption: 8W (maximum)

OSD language: multi-language

Input frequency UHF: 474-860MHz

Bandwidth: 8MHz

Input impedance: 75Ω

Input level: -77 -10dBm

Signal input: IEC-type female MPEG transport stream and A/V decoding

Video standard: MPEG-4 AVC/ H.264 HP at L4

SCART video model: CVBS/RGB

Aspect ratio: 4:3, 16:9

Video resolution: 480i/480P/576i, 576p, 720p and 1,080i

Audio standard: ISO/IEC 14.496-3, AC3, AAC, AAC+

Audio mode: mono, dual-channel, stereo

Multimedia formats:

Picture: JPEG
Audio: MP3
Video: DivX

Front panel: display LED display

USB firmware upgrades PVR and multimedia playback

Channel decoding:

Standard: DVB-T
Demodulation: QPSK, 16QAM, 64QAM, FEC 1/2, 2/3, 3/4, 5/6, 7/8, automatic
Guard: 1/4, 1/8, 1/16, 1/32
Mode: 2, 4, 8K

De-multiplexer:

Standard ISO/IEC 13818-1, ARIB STB-B10
Input maximum bit stream rate: 120Mbps (serial)/15MBps (parallel)

Rear panel output:

HDMI® 480i/480P/576i, 576p, 720p and 1,080i
Loop through output IEC-type, connector and signal tuner

Picture: JPEG

Audio: MP3

Video: DivX

Standard: DVB-T

Demodulation: QPSK, 16QAM, 64QAM, FEC 1/2, 2/3, 3/4, 5/6, 7/8, automatic

Guard: 1/4, 1/8, 1/16, 1/32

Mode: 2, 4, 8K

Standard ISO/IEC 13818-1, ARIB STB-B10

Input maximum bit stream rate: 120Mbps (serial)/15MBps (parallel)

HDMI® 480i/480P/576i, 576p, 720p and 1,080i

Loop through output IEC-type, connector and signal tuner
