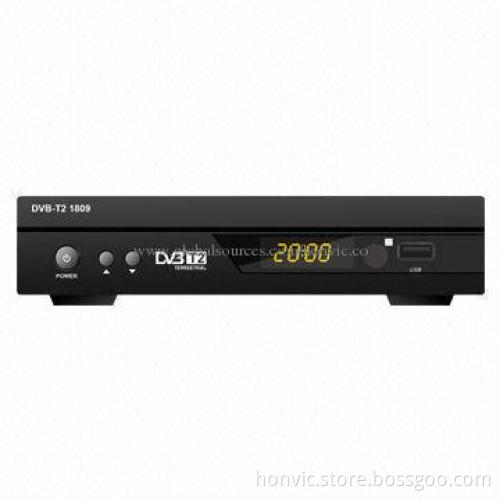

DVB-T2 Receiver with One USB 2.0 and HDMI, MPEG-4/H.264 DVB-T2

Get Latest Price

Payment Type:: T/T, L/C, D/P or O/A

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, D/P or O/A

Product Description

HD DVB-t2 Mpeg4 tuner

Solution: Mstar7816 or ali3812

Basic features:

Operating temperature: 0-40°C
Input voltage: 100-240V AC, 50/60Hz
Power consumption: 8W max
OSD language: multi-language
Tuner:
- IF input frequency UHF: 474MHz-860MHz
- Bandwidth: 8MHz
- Input impedance: 75Ω
- Input level: -77 - -10dBm
- Signal input: IEC-type female Mpeg transport stream and A/V decoding
Video standards: MPEG-4 AVC/H.264 HP at L4
SCART video model: CVBS/RGB
Aspect ratio: 4:3, 16:9
Video resolution: 480i/480P/576i , 576p, 720p and 1080i
Audio standards: ISO/IEC 14.496-3,AC3,AAC, AAC+
Audio modes: mono, dual-channel, stereo
Multimedia formats:
- Picture: JPEG
- Audio: MP3
- Video: DivX
Front panel:
- Display LED display
USB firmware upgrade PVR and multimedia playback
Channel decoding
- Standard: DVB-T
- Demodulation: QPSK, 16QAM, 64QAM
- FEC: 1/2, 2/3, 3/4, 5/6, 7/8, automatic
- Guard: 1/4,1/8,1/16,1/32
- Modes: 2K, 4K,8K
Demultiplexer:
- Standards: ISO/IEC 13818-1, ARIB STB-B10
- Input max bit stream rate: 120Mbps (serial)/15MBps (parallel)
Rear panel output:
- HDMI 480i/480P/576i , 576p, 720p and 1080i
- Loop through output IEC-type, connector, single tuner

Operating temperature: 0-40°C

Input voltage: 100-240V AC, 50/60Hz

Power consumption: 8W max

OSD language: multi-language

Tuner:

IF input frequency UHF: 474MHz-860MHz
Bandwidth: 8MHz
Input impedance: 75Ω
Input level: -77 - -10dBm
Signal input: IEC-type female Mpeg transport stream and A/V decoding

Video standards: MPEG-4 AVC/H.264 HP at L4

SCART video model: CVBS/RGB

Aspect ratio: 4:3, 16:9

Video resolution: 480i/480P/576i , 576p, 720p and 1080i

Audio standards: ISO/IEC 14.496-3,AC3,AAC, AAC+

Audio modes: mono, dual-channel, stereo

Multimedia formats:

Picture: JPEG
Audio: MP3
Video: DivX

Front panel:

Display LED display

USB firmware upgrade PVR and multimedia playback

Channel decoding

Standard: DVB-T
Demodulation: QPSK, 16QAM, 64QAM
FEC: 1/2, 2/3, 3/4, 5/6, 7/8, automatic
Guard: 1/4,1/8,1/16,1/32
Modes: 2K, 4K,8K

Demultiplexer:

Standards: ISO/IEC 13818-1, ARIB STB-B10
Input max bit stream rate: 120Mbps (serial)/15MBps (parallel)

Rear panel output:

HDMI 480i/480P/576i , 576p, 720p and 1080i
Loop through output IEC-type, connector, single tuner

IF input frequency UHF: 474MHz-860MHz

Bandwidth: 8MHz

Input impedance: 75Ω

Input level: -77 - -10dBm

Signal input: IEC-type female Mpeg transport stream and A/V decoding

Picture: JPEG

Audio: MP3

Video: DivX

Display LED display

Standard: DVB-T

Demodulation: QPSK, 16QAM, 64QAM

FEC: 1/2, 2/3, 3/4, 5/6, 7/8, automatic

Guard: 1/4,1/8,1/16,1/32

Modes: 2K, 4K,8K

Standards: ISO/IEC 13818-1, ARIB STB-B10

Input max bit stream rate: 120Mbps (serial)/15MBps (parallel)

HDMI 480i/480P/576i , 576p, 720p and 1080i

Loop through output IEC-type, connector, single tuner
