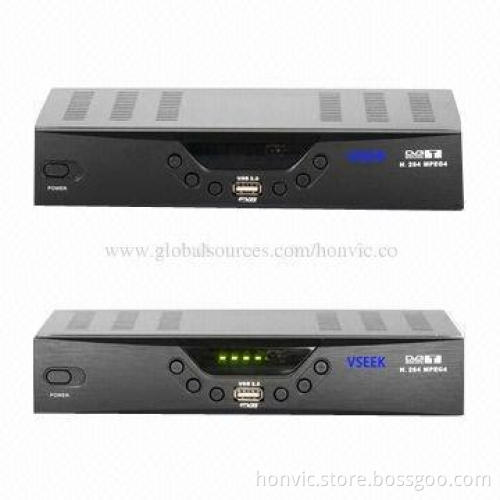

DVB T2 Receivers with One USB2.0 HDMI, MPEG-4/H.264 DVB-T2, 200-240V AC Input Voltage

Get Latest Price

Payment Type:: T/T, L/C, D/P or O/A

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, D/P or O/A

Product Description

Compliant with ETSI EN 302 755 (DVB-T2) standard

Support MEPG-4 AVC (H.264) main and high profile to level4.1

Support MEPG-2 HD/SD decoding (MP at HL/ML)

HE AAC5.1, HE AAC+, Dolby digital, Dolby digital plus audio decoding

HE AAC5.1, HE AAC+, Dolby digital/Dolby digital plus down-mix to two channels

HE AAC5.1, HE AAC+, Dolby digital/Dolby digital plus PCM digital audio output

Multi bandwidth selection: 6, 7 and 8m

Supports 64, 16QAM and QPSK (4QAM) sub-carriers

Video decoding and output: 1,080P/1,080i/720P

Analog video output: PAL/NTSC

Conversion between SD programs and HD programs

Subtitle (OSD output)

Aspect ratio: 4:3/16:9

Electronic program guide (EPG)

Software upgrade (OAD or USB)

USB2.0 supported for upgrade, PVR and time shifting

32 bits true color on screen display (OSD)

Channel and program editor

System resources:

CPU/MPU/main chip: MSD7816 (MIPS 34K at 600MHz)
Flash memory: 32MB
DDR-2 SDRAM: 512MB

Demultiplexer:

Standard: ISO/IEC 13818-1
Input maximum bit stream rate: 120Mbps

Tuner:

Maximum linear high-sensitive and reliable silicon tuner: MXL201
Input frequency range: VHF: 174-230MHz, UHF: 470-862MHz

IF bandwidth: 6,7 or 8MHz

Input signal level: -85 to -20dBm

RF Input Connector: D-type connector (RF in)

Input impedance: 75Ω

De-modulator

Modulation mode: OFDM (orthogonal frequency division multiplexing)

Demodulation :256, 64, 16QAM and QPSK

Guard interval: 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128

FEC code rates: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6

Connector:

RF input: 1 x IEC169-2, Female
RF output: 1 x IEC169-2, Male
Digital output: 1 x HDMI
Analog output: 1 x scart
Digital audio output: 1 x coaxial
USB: 1 x USB2.0 for upgrading, multimedia play, PVR and time shifting

Environmental conditions:

Input voltage: 200-240V AC
Power consumption: 5W (maximum)
Stand-by power consumption: <0.5W
Operating temperature: 0-45°C

2012 in Russia will be fully open DVB-T2 compatible DVB-T receive TV show more and more clear signal receiving more stable

CPU/MPU/main chip: MSD7816 (MIPS 34K at 600MHz)

Flash memory: 32MB

DDR-2 SDRAM: 512MB

Standard: ISO/IEC 13818-1

Input maximum bit stream rate: 120Mbps

Maximum linear high-sensitive and reliable silicon tuner: MXL201

Input frequency range: VHF: 174-230MHz, UHF: 470-862MHz

RF input: 1 x IEC169-2, Female

RF output: 1 x IEC169-2, Male

Digital output: 1 x HDMI

Analog output: 1 x scart

Digital audio output: 1 x coaxial

USB: 1 x USB2.0 for upgrading, multimedia play, PVR and time shifting

Input voltage: 200-240V AC

Power consumption: 5W (maximum)

Stand-by power consumption: <0.5W

Operating temperature: 0-45°C
