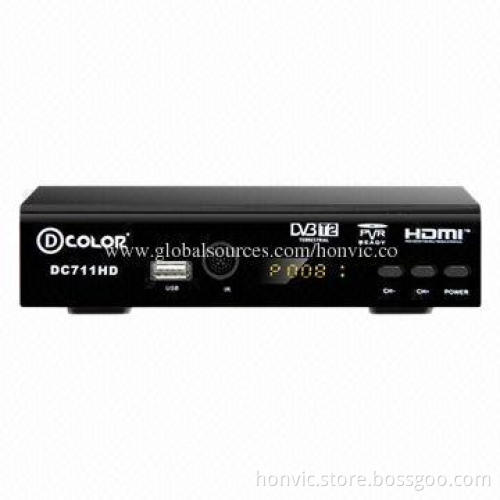

Set Top Box with One USB2.0 and HDMI, PVR and 1,080 Pixels

Get Latest Price

Payment Type:: T/T, L/C, D/P or O/A

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, D/P or O/A

Product Description

Specifications:

Compliant with ETSI EN 302 755 (DVB-T2 ) standard
Supports MEPG-4 AVC (H.264) main and high-profile to level 4.1
Supports MEPG-2 HD/SD decoding (MP at HL/ML)
HE AAC5.1, HE AAC+, Dolby digital, Dolby digital plus audio decoding
HE AAC5.1, HE AAC+, Dolby digital/Dolby digital plus down-mix to two channels
HE AAC5.1, HE AAC+, Dolby digital/Dolby digital plus PCM digital audio output
Multi-bandwidth selection: 6, 7 and 8M
Supports 64QAM, 16QAM and QPSK (4QAM) sub-carrier
Video decoding and output: 1,080P/1,080i/720P
Analog video output: PAL/NTSC
Conversion between SD programs and HD programs
Subtitle (OSD output)
Aspect ratio: 4:3/16:9
Electronic program guide (EPG)
Software upgrade (OAD or USB)
USB2.0 supported for upgrade, PVR and time shifting
32 bits true color on screen display (OSD)
Channel and program editor
System resources
CPU/MPUM/main chip: MSD7816 (MIPS 34K at 600MHz)
Flash memory: 32MB
DDR-2 SDRAM: 512MB
Standard: IEC 13818-1
Input bit stream rate: 120M

Tuner:

Maxlinear high-sensitive and reliable silicon tuner: MXL201
Input frequency range:
- VHF: 174-230MHz
- UHF: 470-862MHz
IF bandwidth: 6, 7 or 8MHz
Input signal level: -85-20dBm
RF input connector: D-type connector (RF-in)
Input impedance: 75Ω

De-modulator:

Modulation mode: OFDM
Demodulation: 256, 64, 16QAM and QPSK
Guard interval: 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128
FEC code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6

Connector:

RF input: 1 x IEC169-2, female
RF output: 1 x IEC169-2, male
Digital output: 1 x HDMI
Analog output: 1 x scart
Digital audio output: 1 x coaxial
USB: 1 x USB2.0 for upgrading, multimedia play, PVR and time shifting

Environmental conditions:

Input voltage: 200-240V
Power consumption: 5W (maximum)
Stand-by power consumption: <0.5W
Operating temperature: 0-45°C
2012 in Russia will be fully open DVB-T2 compatible DVB-T receive TV show more and more clear signal receiving more stable

Compliant with ETSI EN 302 755 (DVB-T2 ) standard

Supports MEPG-4 AVC (H.264) main and high-profile to level 4.1

Supports MEPG-2 HD/SD decoding (MP at HL/ML)

HE AAC5.1, HE AAC+, Dolby digital, Dolby digital plus audio decoding

HE AAC5.1, HE AAC+, Dolby digital/Dolby digital plus down-mix to two channels

HE AAC5.1, HE AAC+, Dolby digital/Dolby digital plus PCM digital audio output

Multi-bandwidth selection: 6, 7 and 8M

Supports 64QAM, 16QAM and QPSK (4QAM) sub-carrier

Video decoding and output: 1,080P/1,080i/720P

Analog video output: PAL/NTSC

Conversion between SD programs and HD programs

Subtitle (OSD output)

Aspect ratio: 4:3/16:9

Electronic program guide (EPG)

Software upgrade (OAD or USB)

USB2.0 supported for upgrade, PVR and time shifting

32 bits true color on screen display (OSD)

Channel and program editor

System resources

CPU/MPUM/main chip: MSD7816 (MIPS 34K at 600MHz)

Flash memory: 32MB

DDR-2 SDRAM: 512MB

Standard: IEC 13818-1

Input bit stream rate: 120M

Maxlinear high-sensitive and reliable silicon tuner: MXL201

Input frequency range:

VHF: 174-230MHz
UHF: 470-862MHz

IF bandwidth: 6, 7 or 8MHz

Input signal level: -85-20dBm

RF input connector: D-type connector (RF-in)

Input impedance: 75Ω

VHF: 174-230MHz

UHF: 470-862MHz

Modulation mode: OFDM

Demodulation: 256, 64, 16QAM and QPSK

Guard interval: 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128

FEC code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6

RF input: 1 x IEC169-2, female

RF output: 1 x IEC169-2, male

Digital output: 1 x HDMI

Analog output: 1 x scart

Digital audio output: 1 x coaxial

USB: 1 x USB2.0 for upgrading, multimedia play, PVR and time shifting

Input voltage: 200-240V

Power consumption: 5W (maximum)

Stand-by power consumption: <0.5W

Operating temperature: 0-45°C

2012 in Russia will be fully open DVB-T2 compatible DVB-T receive TV show more and more clear signal receiving more stable
