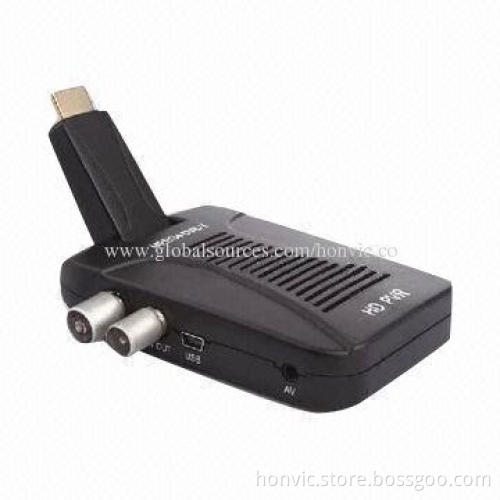

HD DVB T2 Receivers with One USB2.0 and HDMI, MPEG-4/H.264 DVB-T2, 75 Ohms Input Impedance

Get Latest Price

Payment Type:: T/T, L/C, D/P or O/A

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, D/P or O/A

Product Description

Compliant with ETSI EN 302 755 (DVB-T2) standard

Solution: MSD7802 or ALI3812

Supports MEPG-4 AVC (H.264) main and high profile to level4.1

Supports MEPG-2 HD/SD decoding (MP@HL/ML)

HE AAC5.1, HE AAC+, Dolby digital, Dolby digital plus audio decoding

HE AAC5.1, HE AAC+, Dolby digital/Dolby digital plus down-mix to two channels

HE AAC5.1, HE AAC+, Dolby digital/Dolby digital plus PCM digital audio output

Multi bandwidth selection: 6M, 7M and 8M

Supports 64QAM, 16QAM and QPSK (4QAM) sub-carriers

Video decoding and output: 1080p/1080i/720p

Analog video output: PAL/NTSC

Conversion between SD programs and HD programs

Subtitle (OSD output)

Aspect ratio: 4:3/16:9

Electronic program guide (EPG)

Software upgrade (OAD or USB)15 USB2.0 supported for upgrade, PVR and time shifting

32 bits true color on screen display (OSD)

Channel and program editor

System resources

CPU/MPU/mainchip: MSD7816 (MIPS 34K at 600MHz)

Flash memory: 32Mbit

DDR-2 SDRAM: 512Mbit

Demultiplexer:

Standard: ISO/IEC 13818-1
Input maximum bit stream rate: 120Mbps

Tuner:

Maxlinear high sensitive and reliable silicon tuner: MXL201
Input frequency range:
- VHF: 174-230MHz
- UHF: 470-862MHz
IF bandwidth: 6,7 or 8MHz
Signal level: -85dBm- -20dBm
RF input connector: D-type connector (RF in)
Input impedance: 75Ω

De-modulator:

Modulation mode: OFDM (Orthogonal frequency division multiplexing)
Demodulation: 256QAM, 64QAM, 16QAM and QPSK

Guard interval: 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128

FEC code rates: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6

RF input: 1 x IEC169-2, female

RF output: 1 x IEC169-2, male

Digital output: 1 x HDMI

Analog output: 1 x scart

Digital audio output: 1 x coaxial

USB: 1 x USB2.0 for upgrading, multimedia play, PVR and time shifting

Environmental conditions:

Input voltage: AC 200-240V
Power consumption: maximum 5W
Stand-by power consumption: <0.5W
Operating temperatures: 0-45°C

2012 in Russia will be fully open DVB-T2 compatible DVB-T receive TV show more and more clear signal receiving more stable

Standard: ISO/IEC 13818-1

Input maximum bit stream rate: 120Mbps

Maxlinear high sensitive and reliable silicon tuner: MXL201

Input frequency range:

VHF: 174-230MHz
UHF: 470-862MHz

IF bandwidth: 6,7 or 8MHz

Signal level: -85dBm- -20dBm

RF input connector: D-type connector (RF in)

Input impedance: 75Ω

VHF: 174-230MHz

UHF: 470-862MHz

Modulation mode: OFDM (Orthogonal frequency division multiplexing)

Demodulation: 256QAM, 64QAM, 16QAM and QPSK

Input voltage: AC 200-240V

Power consumption: maximum 5W

Stand-by power consumption: <0.5W

Operating temperatures: 0-45°C
