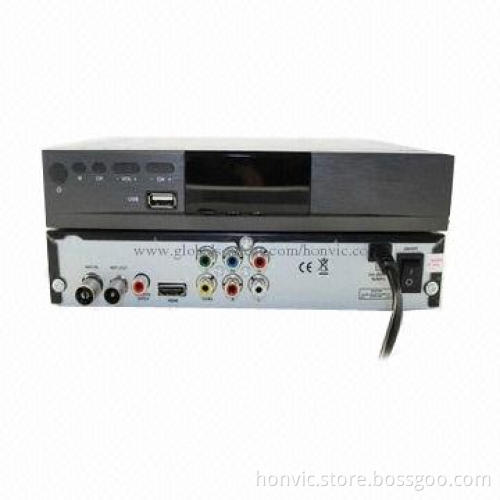

Set Top Box with One USB 2.0 & HDMI, PVR and 1080P

Get Latest Price

Payment Type:: T/T, L/C, D/P or O/A

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, D/P or O/A

Product Description

Compliant with ETSI EN 302 755 (DVB-T2 ) standard

Solution: MSD7816 or ALI3812

Supports MEPG-4 AVC (H.264) main and high profile to level4.1

Supports MEPG-2 HD/SD decoding (MP@HL/ML)

HE AAC5.1, HE AAC+, dolby digital, dolby digital plus audio decoding

HE AAC5.1, HE AAC+, dolby digital/dolby digital plus down-mix to two channels

HE AAC5.1, HE AAC+, dolby digital/dolby digital plus PCM digital audio output

Multi bandwidth selection: 6M 7M & 8M

Supports 64QAM, 16QAM and QPSK (4QAM) sub-carriers

Video decoding and output : 1080p/1080i/720p

Analog video output: PAL/NTSC

Conversion between SD programs and HD programs

Subtitle (OSD output)

Aspect ratio: 4:3/16:9

Electronic program guide (EPG)

Software upgrade (OAD or USB)

USB2.0 supported for upgrade, PVR and timeshifting

32 bits true color on screen display (OSD)

Channel and program editor

System Resources

CPU/MPU/Mainchip: MSD7816 (MIPS 34K@600MHz)
Flash memory: 32Mbit
DDR-2 SDRAM: 512Mbit

Demultiplexer

Standard: ISO/IEC 13818-1
Input Max. Bit Stream Rate: 120Mbps

Tuner

Maxlinear high sensitive and reliable silicon tuner: MXL201
Input frequency range : VHF: 174~230MHz, UHF: 470~862MHz
IF bandwidth : 6,7 or 8MHz
Input signal level : －85dBm ～－20dBm
RF input connector: D-type connector(RF IN)
Input impedance : 75Ω

De-modulator

Modulation mode: OFDM (Orthogonal Frequency Division Multiplexing)
Demodulation: 256QAM, 64QAM, 16QAM and QPSK
Guard interval: 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128
FEC code rates: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6

Connector

RF input: 1 x IEC169-2, female
RF output: 1 x IEC169-2, male
Digital output: 1 x HDMI
Analog output: 1 x Scart
Digital auto output: 1 x Coaxial
USB: 1 x USB2.0 for upgrading, multi-media play, PVR and timeshifting

Environmental conditions

Input voltages: AC 200 ~ 240V
Power consumption: Max. 5W
Stand-by power consumption: <0.5W
Operating temperatures: 0 ~ 45°C

CPU/MPU/Mainchip: MSD7816 (MIPS 34K@600MHz)

Flash memory: 32Mbit

DDR-2 SDRAM: 512Mbit

Standard: ISO/IEC 13818-1

Input Max. Bit Stream Rate: 120Mbps

Maxlinear high sensitive and reliable silicon tuner: MXL201

Input frequency range : VHF: 174~230MHz, UHF: 470~862MHz

IF bandwidth : 6,7 or 8MHz

Input signal level : －85dBm ～－20dBm

RF input connector: D-type connector(RF IN)

Input impedance : 75Ω

Modulation mode: OFDM (Orthogonal Frequency Division Multiplexing)

Demodulation: 256QAM, 64QAM, 16QAM and QPSK

Guard interval: 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128

FEC code rates: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6

RF input: 1 x IEC169-2, female

RF output: 1 x IEC169-2, male

Digital output: 1 x HDMI

Analog output: 1 x Scart

Digital auto output: 1 x Coaxial

USB: 1 x USB2.0 for upgrading, multi-media play, PVR and timeshifting

Input voltages: AC 200 ~ 240V

Power consumption: Max. 5W

Stand-by power consumption: <0.5W

Operating temperatures: 0 ~ 45°C
