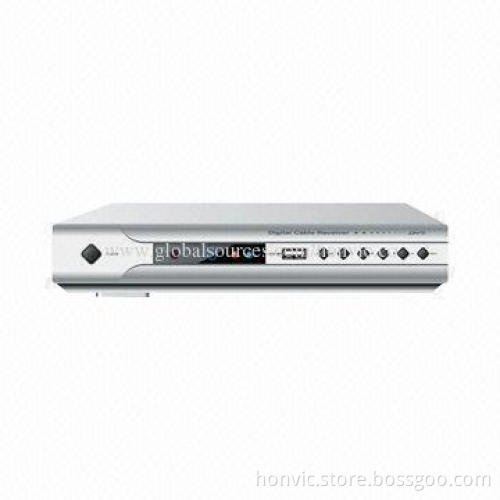

DVB T2 Receiver with One USB2.0 and HDMI, 1,080P and PVR

Get Latest Price

Payment Type:: T/T, L/C, D/P or O/A

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, D/P or O/A

Product Description

Features:

Fully HD DVB-T2 MPEG4/H.264 compliant, FTA model
Supports PVR via USB and multimedia playback, time-shift function
Supports Dolby AC3, AAC, HE-AAC (optional)
Video resolution: 1,080P, 1,080i, 720, 576P, 576i
Supports automatic, manual and NIT search
Supports electronic program guide (EPG) for 7 days
OSD language: English and other languages as per request
Supports subtitle/teletext/audio language selection
Variable aspect ratio: auto, 16:9 pillar box, 4:3 pan and scan, 4:3 letter box
Favorite channel edit and parental lock function
PAL/NTSC auto-conversion
Capacity for storing up to 1,000 channels
Easy and fast software upgrade via USB interface
Interface (optional): HD-out, SCART, RCA-V/L/R, S/PDIF (coaxial), USB
Fully plastic housing

Tuner:

Receiving frequency range:
- VHF: 174 to 230MHz
- UHF: 470MHz to 862MHz
Input signal level: -80 to -25dBm
Input impedance: 75Ω

De-modulation:

IF bandwidth: 7/8MHz
Video demodulation: COFDM
Transmission mode: 2K FFT, 8K FFT
Constellations: QPSK, 16, 64, 256QAM
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8

Video and audio decoding:

MPEG2 MP at HL and MPEG4 AVC/H.264 HP at L 4.1
Video resolution: 1,080P, 1,080i, 720, 576P, 576i
Teletext: supports DVB-TXTETSI/EN300472
Audio track: mono, dual-channel, stereo
Audio sampling rate: 32, 44.1, 48KHz

Rear panel:

Input voltage: 5V DC/2A
RF input /out connector: IEC 169-24
HDMI-out x 1
A/V output: RCA-V/ L/R x1
Coaxial x1

Front panel:

IR receiver: 38kHz
4-digit LED for channel number and time display (optional)
USB2.0 port x1

RCU

Category: IR (carrier 38kHz)
Batteries: 2 x 1.5V AAA

Accessory:

Remote control/user's manual/battery/AV cable (optional)

Power supply:

Adapter:
- Input voltage: 100-240V AC, 50/60Hz
- Output: 5V DC/ 2A
Power consumption: ≤10W
Standby power: ≤0.6W

Ambient:

Operating temperature: 5 to 40°C
Storage temperature: -20 to 70°C

Fully HD DVB-T2 MPEG4/H.264 compliant, FTA model

Supports PVR via USB and multimedia playback, time-shift function

Supports Dolby AC3, AAC, HE-AAC (optional)

Video resolution: 1,080P, 1,080i, 720, 576P, 576i

Supports automatic, manual and NIT search

Supports electronic program guide (EPG) for 7 days

OSD language: English and other languages as per request

Supports subtitle/teletext/audio language selection

Variable aspect ratio: auto, 16:9 pillar box, 4:3 pan and scan, 4:3 letter box

Favorite channel edit and parental lock function

PAL/NTSC auto-conversion

Capacity for storing up to 1,000 channels

Easy and fast software upgrade via USB interface

Interface (optional): HD-out, SCART, RCA-V/L/R, S/PDIF (coaxial), USB

Fully plastic housing

Receiving frequency range:

VHF: 174 to 230MHz
UHF: 470MHz to 862MHz

Input signal level: -80 to -25dBm

Input impedance: 75Ω

VHF: 174 to 230MHz

UHF: 470MHz to 862MHz

IF bandwidth: 7/8MHz

Video demodulation: COFDM

Transmission mode: 2K FFT, 8K FFT

Constellations: QPSK, 16, 64, 256QAM

Code rate: 1/2, 2/3, 3/4, 5/6, 7/8

MPEG2 MP at HL and MPEG4 AVC/H.264 HP at L 4.1

Video resolution: 1,080P, 1,080i, 720, 576P, 576i

Teletext: supports DVB-TXTETSI/EN300472

Audio track: mono, dual-channel, stereo

Audio sampling rate: 32, 44.1, 48KHz

Input voltage: 5V DC/2A

RF input /out connector: IEC 169-24

HDMI-out x 1

A/V output: RCA-V/ L/R x1

Coaxial x1

IR receiver: 38kHz

4-digit LED for channel number and time display (optional)

USB2.0 port x1

Category: IR (carrier 38kHz)

Batteries: 2 x 1.5V AAA

Remote control/user's manual/battery/AV cable (optional)

Adapter:

Input voltage: 100-240V AC, 50/60Hz
Output: 5V DC/ 2A

Power consumption: ≤10W

Standby power: ≤0.6W

Input voltage: 100-240V AC, 50/60Hz

Output: 5V DC/ 2A

Operating temperature: 5 to 40°C

Storage temperature: -20 to 70°C
