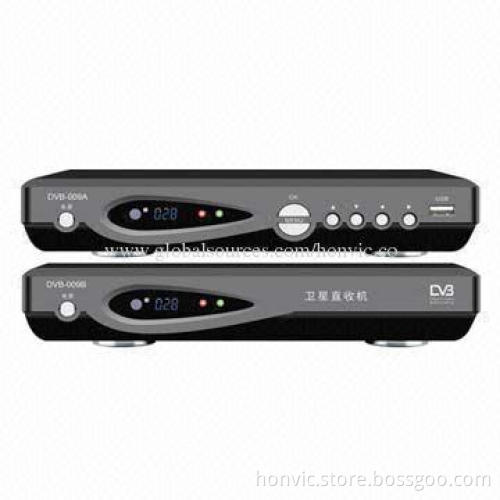

DVB-T2 Digital Set-top Boxes with One USB2.0 and HDMI, PAL/NTSC Auto-conversion

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

220x38mm

Solution: Mstar7816 or Ali3812
Fully HD DVB-T2 MPEG4/H.264 compliant, FTA model
Support PVR via USB and multimedia playback, time-shift function
Support Dolby AC3, AAC, HE-AAC (optional)
Video resolution: 1,080P, 1,080i, 720, 576P, 576i
Support automatic, manual and NIT search
Support electronic program guide (EPG) for 7 days
OSD language: English and other languages as per your requests
Support subtitle/teletext/audio language selection
Variable aspect ratio: auto,16:9 pillar box, 4:3 pan and scan, 4:3 letter box
Favorite channel edit and parental lock function
PAL/NTSC auto-conversion
Capacity for storing: up to 1,000 channels
Easy and fast software upgrade via USB interface
Interface (optional): HD-out, SCART, RCA-V/L/R, S/PDIF (coaxial), USB
Fully plastic housing

Tuner:

Receiving frequency range:
- VHF: 174 to 230MHz
- UHF: 470 to 862MHz
Input signal level: -80 to -25dBm
Input impedance: 75Ω
De-modulation
IF bandwidth: 7/8MHz
Video demodulation: COFDM
Transmission mode: 2K FFT, 8K FFT
Constellations: QPSK, 16, 64, 256QAM
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8

Video and audio decoding:

MPEG2 MP at HL and MPEG4 AVC/H.264 HP at L 4.1
Video resolution: 1,080P, 1,080i, 720, 576P, 576i
Teletext: support DVB-TXTETSI/EN300472
Audio decode: Dolby AC3, AAC, HE-AAC (optional)
Audio track: mono, dual-channel, stereo
Audio sampling rate: 32, 44.1, 48kHz

Rear panel

Input voltage: 100-240V AC, 50/ 60Hz
RF input connector: IEC 169-24 female
HD-out
A/V output: RCA-V/L/R x 1 (optional)
Coaxial x 1

Front panel

IR receiver: 38kHz
4-digit LED for channel number and time display (optional)
USB2.0 port x 1 (on the side)
Keys: power, CH+, CH-

RCU:

Category: IR (carrier 38kHz)
Batteries: 2 x 1.5V AAA

Accessories: remote control, user's manual, battery, AV cable (optional)

Solution: Mstar7816 or Ali3812

Fully HD DVB-T2 MPEG4/H.264 compliant, FTA model

Support PVR via USB and multimedia playback, time-shift function

Support Dolby AC3, AAC, HE-AAC (optional)

Video resolution: 1,080P, 1,080i, 720, 576P, 576i

Support automatic, manual and NIT search

Support electronic program guide (EPG) for 7 days

OSD language: English and other languages as per your requests

Support subtitle/teletext/audio language selection

Variable aspect ratio: auto,16:9 pillar box, 4:3 pan and scan, 4:3 letter box

Favorite channel edit and parental lock function

PAL/NTSC auto-conversion

Capacity for storing: up to 1,000 channels

Easy and fast software upgrade via USB interface

Interface (optional): HD-out, SCART, RCA-V/L/R, S/PDIF (coaxial), USB

Fully plastic housing

Receiving frequency range:

VHF: 174 to 230MHz
UHF: 470 to 862MHz

Input signal level: -80 to -25dBm

Input impedance: 75Ω

De-modulation

IF bandwidth: 7/8MHz

Video demodulation: COFDM

Transmission mode: 2K FFT, 8K FFT

Constellations: QPSK, 16, 64, 256QAM

Code rate: 1/2, 2/3, 3/4, 5/6, 7/8

VHF: 174 to 230MHz

UHF: 470 to 862MHz

MPEG2 MP at HL and MPEG4 AVC/H.264 HP at L 4.1

Video resolution: 1,080P, 1,080i, 720, 576P, 576i

Teletext: support DVB-TXTETSI/EN300472

Audio decode: Dolby AC3, AAC, HE-AAC (optional)

Audio track: mono, dual-channel, stereo

Audio sampling rate: 32, 44.1, 48kHz

Input voltage: 100-240V AC, 50/ 60Hz

RF input connector: IEC 169-24 female

HD-out

A/V output: RCA-V/L/R x 1 (optional)

Coaxial x 1

IR receiver: 38kHz

4-digit LED for channel number and time display (optional)

USB2.0 port x 1 (on the side)

Keys: power, CH+, CH-

Category: IR (carrier 38kHz)

Batteries: 2 x 1.5V AAA
