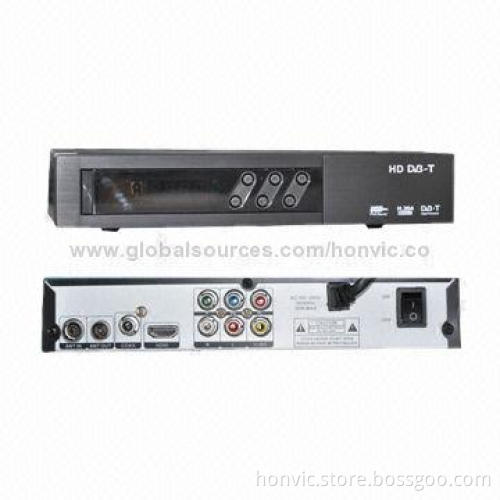

DVB-T2 Receiver with One USB2.0 and HDMI, MPEG-4/H.264

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

DVB-T2 receiver with one USB2.0 and HDMI
Solution: Mstar7802 or ali3812
Fully HD DVB-T2 MPEG4/H.264 compliant, FTA model
Supports PVR via USB and multimedia playback and time-shift function
Supports Dolby AC3, AAC, HE-AAC (optional)
Video resolution: 1,080p, 1,080i, 720p, 576p, 576i
Supports automatic, manual and NIT search
Supports electronic program guide (EPG) for 7 days
OSD language: English and other languages as per request
Supports subtitle/teletext/audio language selection
Variable aspect ratio: auto, 16:9 pillar box, 4:3 pan and scan, 4:3 letter box
Favorite channel edit and parental lock function
PAL/NTSC auto-conversion
Capacity for storing up to 1,000 channels
Easy and fast software upgrade via USB interface
Interfaces (optional): HD-out, SCART, RCA-V/L/R,S/PDIF (coaxial), USB
Fully plastic housing
CPU: Mstar7816
Receiving frequency range:
- VHF: 174 to 230MHz
- UHF: 470 to 862MHz
Input signal level: -80-25dBm
Input impedance: 75Ω
If bandwidth: 7/8MHz
Video demodulation: COFDM
Transmission mode: 2K FFT, 8K FFT
Constellations: QPSK, 16QAM, 64QAM, 256QAM
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
MPEG2 MP at HL at MPEG4 AVC/H.264 HP at L 4.1
Video resolution: 1,080p, 1,080i, 720p, 576p, 576i
Teletext: supports DVB-TXTETSI/EN300472
Audio decode: Dolby AC3, AAC, HE-AAC (optional)
Audio track: mono, dual-channel, stereo
Audio sampling rate: 32, 44.1, 48kHz
Input voltage: 100-240V AC, 50/ 60Hz
RF input connector: IEC 169-24 female
HD-out A/V output: RCA-V/ L/R x1 (optional)
Coaxial x1
IR receiver: 38kHz
4-digit LED for channel number and time display (optional)
USB2.0 port x1 (on the side)
Keys: power, CH+, CH-
Batteries: 2 x 1.5V AAA

Accessories:

Remote control/user's manual/battery/AV cable (optional)

DVB-T2 receiver with one USB2.0 and HDMI

Solution: Mstar7802 or ali3812

Fully HD DVB-T2 MPEG4/H.264 compliant, FTA model

Supports PVR via USB and multimedia playback and time-shift function

Supports Dolby AC3, AAC, HE-AAC (optional)

Video resolution: 1,080p, 1,080i, 720p, 576p, 576i

Supports automatic, manual and NIT search

Supports electronic program guide (EPG) for 7 days

OSD language: English and other languages as per request

Supports subtitle/teletext/audio language selection

Variable aspect ratio: auto, 16:9 pillar box, 4:3 pan and scan, 4:3 letter box

Favorite channel edit and parental lock function

PAL/NTSC auto-conversion

Capacity for storing up to 1,000 channels

Easy and fast software upgrade via USB interface

Interfaces (optional): HD-out, SCART, RCA-V/L/R,S/PDIF (coaxial), USB

Fully plastic housing

CPU: Mstar7816

Receiving frequency range:

VHF: 174 to 230MHz
UHF: 470 to 862MHz

Input signal level: -80-25dBm

Input impedance: 75Ω

If bandwidth: 7/8MHz

Video demodulation: COFDM

Transmission mode: 2K FFT, 8K FFT

Constellations: QPSK, 16QAM, 64QAM, 256QAM

Code rate: 1/2, 2/3, 3/4, 5/6, 7/8

MPEG2 MP at HL at MPEG4 AVC/H.264 HP at L 4.1

Video resolution: 1,080p, 1,080i, 720p, 576p, 576i

Teletext: supports DVB-TXTETSI/EN300472

Audio decode: Dolby AC3, AAC, HE-AAC (optional)

Audio track: mono, dual-channel, stereo

Audio sampling rate: 32, 44.1, 48kHz

Input voltage: 100-240V AC, 50/ 60Hz

RF input connector: IEC 169-24 female

HD-out A/V output: RCA-V/ L/R x1 (optional)

Coaxial x1

IR receiver: 38kHz

4-digit LED for channel number and time display (optional)

USB2.0 port x1 (on the side)

Keys: power, CH+, CH-

Batteries: 2 x 1.5V AAA

VHF: 174 to 230MHz

UHF: 470 to 862MHz

Remote control/user's manual/battery/AV cable (optional)
