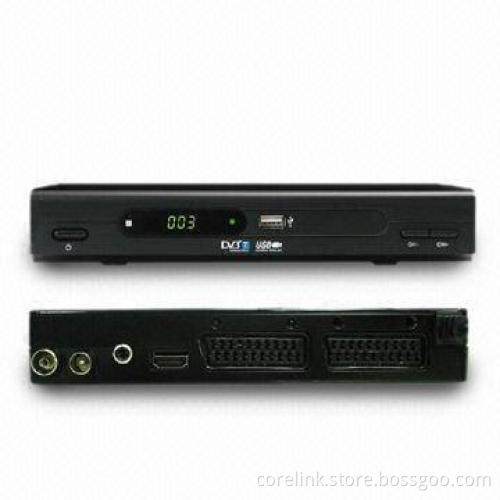

HD MPEG4/H.264 Set-top Box/DVB-T, Supports USB PVR and HDMI Output
  • HD MPEG4/H.264 Set-top Box/DVB-T, Supports USB PVR and HDMI Output
HD MPEG4/H.264 Set-top Box/DVB-T, Supports USB PVR and HDMI Output

HD MPEG4/H.264 Set-top Box/DVB-T, Supports USB PVR and HDMI Output

Get Latest Price
Payment Type:
T/T, L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C
Product Description
Product Description
  • Features:
    • Solution: MStar 7818 + MXL5007
    • Supports HDMI 1,080p
    • Compliant with DVB-T, MEPG-2/4 H.264 HD standards
    • Compatible with 576i/576p/720p/1,080i (MStar7828)/1,080p(Mstar7818) video formats
    • Automatic and manual scan of all available TV and radiochannels
    • Aspect ratios: 16:9 and 4:3
    • HDMI/SCART output, two SCART for TV and VCR
    • Supports multi-language subtitle output
    • Powerful and highly effective seven days EPG function
    • Supports teletext
    • Parental lock
    • PVR ready function via USB 2.0
    • Multimedia playback via USB 2.0
    • Stores up to 1,000 programs and keeps in memory while power isoff
  • Parameters:
    • Operating temperatures: 0 to 40°C
    • Input voltages: 100 to 240V AC, 50/60Hz
    • Power consumption: 8W maximum
    • Supports multiple OSD languages
    • With tuner
    • IF/input frequency (UHF): 474 to 860MHz
    • Bandwidth: 8MHz
    • Input impedance: 75©
    • Input level: -77 to -10dBm
    • Signal input: IEC type Female
    • Supports MPEG transport stream and A/V decoding
    • Video standard: MPEG-4 AVC/H.264 HP at L4
    • SCART video model: CVBS/RGB
    • Aspect ratios: 4:3 and 16:9
    • Video resolutions: 480i, 480p, 576i, 576p, 720p and 1,080i
    • Audio standards: ISO/IEC 14.496-3, AC3, AAC and AAC+
    • Audio modes: mono, dual channel and stereo
  • HDMI, the HDMI logo and High-Definition MultimediaInterface are trademarks or registered trademarks of HDMI LicensingLLC.
  • Solution: MStar 7818 + MXL5007
  • Supports HDMI 1,080p
  • Compliant with DVB-T, MEPG-2/4 H.264 HD standards
  • Compatible with 576i/576p/720p/1,080i (MStar7828)/1,080p(Mstar7818) video formats
  • Automatic and manual scan of all available TV and radiochannels
  • Aspect ratios: 16:9 and 4:3
  • HDMI/SCART output, two SCART for TV and VCR
  • Supports multi-language subtitle output
  • Powerful and highly effective seven days EPG function
  • Supports teletext
  • Parental lock
  • PVR ready function via USB 2.0
  • Multimedia playback via USB 2.0
  • Stores up to 1,000 programs and keeps in memory while power isoff
  • Operating temperatures: 0 to 40°C
  • Input voltages: 100 to 240V AC, 50/60Hz
  • Power consumption: 8W maximum
  • Supports multiple OSD languages
  • With tuner
  • IF/input frequency (UHF): 474 to 860MHz
  • Bandwidth: 8MHz
  • Input impedance: 75©
  • Input level: -77 to -10dBm
  • Signal input: IEC type Female
  • Supports MPEG transport stream and A/V decoding
  • Video standard: MPEG-4 AVC/H.264 HP at L4
  • SCART video model: CVBS/RGB
  • Aspect ratios: 4:3 and 16:9
  • Video resolutions: 480i, 480p, 576i, 576p, 720p and 1,080i
  • Audio standards: ISO/IEC 14.496-3, AC3, AAC and AAC+
  • Audio modes: mono, dual channel and stereo
