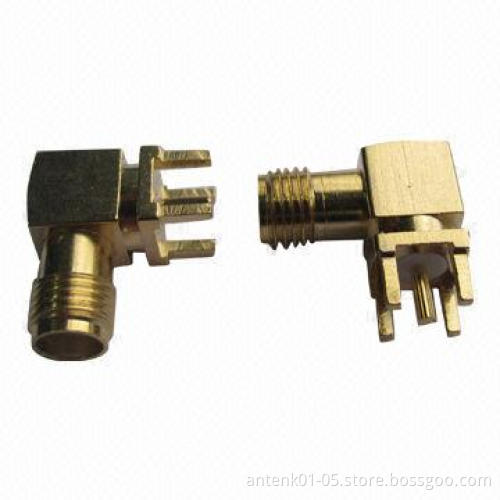

SMA Jacks, R/A PCB Receptacle
  • SMA Jacks, R/A PCB Receptacle
  • SMA Jacks, R/A PCB Receptacle
SMA Jacks, R/A PCB Receptacle
SMA Jacks, R/A PCB Receptacle

SMA Jacks, R/A PCB Receptacle

Get Latest Price
Payment Type:
T/T in Advance, PayPal or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, PayPal or Western Union
Product Description
Product Description
  • SMA R/A PCB receptacle jack connector
  • Body: brass with gold plating
  • Insulator: Teflon
  • Frequency range:
    • Flexible cable: 0 to 12.4GHz
    • Semi-rigid cable: 0 to 18GHz
  • Working voltage:
    • Flexible cable: 190, 250 and 335Vrms (at sea level)
    • Semi-rigid cable: 335 and 500Vrms (at sea level)
  • Withstand voltage:
    • Flexible cable: 500, 750 and 1,000Vrms (at sea level)
    • Semi-rigid cable: 1,000 and 1,500Vrms (at sea level)
  • Contact resistance:
    • Center contact: d5M©
    • Outer contact: d5M©
    • Insulation resistance: d5,000M©
  • Center conductor withdrawal force: d0.28N
  • Vibration: 100m/s2 (80 to 2000Hz)
  • Impedance: 50©
  • Durability: 500 cycles
  • Temperature range:
    • Flexible cable: -55 to 55°C
    • PE cable: -40 to 85°C
    • Semi-rigid cable: 55 to 100°C
  • Compliant with the RoHS Directive
  • Flexible cable: 0 to 12.4GHz
  • Semi-rigid cable: 0 to 18GHz
  • Flexible cable: 190, 250 and 335Vrms (at sea level)
  • Semi-rigid cable: 335 and 500Vrms (at sea level)
  • Flexible cable: 500, 750 and 1,000Vrms (at sea level)
  • Semi-rigid cable: 1,000 and 1,500Vrms (at sea level)
  • Center contact: d5M©
  • Outer contact: d5M©
  • Insulation resistance: d5,000M©
  • Flexible cable: -55 to 55°C
  • PE cable: -40 to 85°C
  • Semi-rigid cable: 55 to 100°C
