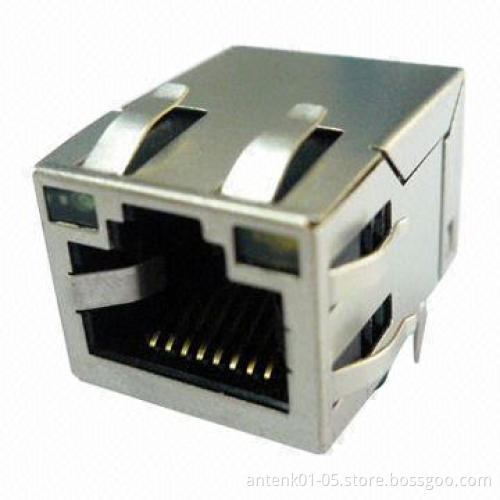

RJ45 Connectors with Magnetic Transformer Modules and 125V AC Voltage Rating
  • RJ45 Connectors with Magnetic Transformer Modules and 125V AC Voltage Rating
  • RJ45 Connectors with Magnetic Transformer Modules and 125V AC Voltage Rating
RJ45 Connectors with Magnetic Transformer Modules and 125V AC Voltage Rating
RJ45 Connectors with Magnetic Transformer Modules and 125V AC Voltage Rating

RJ45 Connectors with Magnetic Transformer Modules and 125V AC Voltage Rating

Get Latest Price
Payment Type:
T/T in Advance, PayPal, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, PayPal, Western Union
Product Description
Product Description
  • Specifications:
    • Electrical:
      • Current rating: 1.5A
      • Voltage rating: 125V AC
      • Insulation resistance: 500MΩ (minimum)
      • Contact resistance: 30MΩ (maximum)
      • Withstanding voltage: 1,000V AC (RMS) at 50 or 60Hz for oneminute
    • Mechanical:
      • Insertion force: 2.2kgf (maximum)
      • Retention strength: 7.7kgf (minimum) between jack and plug
      • Durability: 600 mating cycles minimum
    • Materials:
      • Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0) andPA46 (UL94V-0)
    • Contact wire:
      • Ø0.45mm phosphor bronze gold plated over nickel
      • 0.35mm thickness phosphor bronze alloy selective gold platedover nickel
    • Shield: 0.20 to 0.25mm thicknesses brass with tin plating
    • Gold plating: 3, 6, 15, 30, and 50μ inches
    • Working temperature: -40 to 85°C
  • Electrical:
    • Current rating: 1.5A
    • Voltage rating: 125V AC
    • Insulation resistance: 500MΩ (minimum)
    • Contact resistance: 30MΩ (maximum)
    • Withstanding voltage: 1,000V AC (RMS) at 50 or 60Hz for oneminute
  • Mechanical:
    • Insertion force: 2.2kgf (maximum)
    • Retention strength: 7.7kgf (minimum) between jack and plug
    • Durability: 600 mating cycles minimum
  • Materials:
    • Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0) andPA46 (UL94V-0)
  • Contact wire:
    • Ø0.45mm phosphor bronze gold plated over nickel
    • 0.35mm thickness phosphor bronze alloy selective gold platedover nickel
  • Shield: 0.20 to 0.25mm thicknesses brass with tin plating
  • Gold plating: 3, 6, 15, 30, and 50μ inches
  • Working temperature: -40 to 85°C
  • Current rating: 1.5A
  • Voltage rating: 125V AC
  • Insulation resistance: 500MΩ (minimum)
  • Contact resistance: 30MΩ (maximum)
  • Withstanding voltage: 1,000V AC (RMS) at 50 or 60Hz for oneminute
  • Insertion force: 2.2kgf (maximum)
  • Retention strength: 7.7kgf (minimum) between jack and plug
  • Durability: 600 mating cycles minimum
  • Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0) andPA46 (UL94V-0)
  • Ø0.45mm phosphor bronze gold plated over nickel
  • 0.35mm thickness phosphor bronze alloy selective gold platedover nickel
