Micro HDMI cable connect to VGA, convert digital video to analog video on VGA monitors

Micro HDMI cable connect to VGA, convert digital video to analog video on VGA monitors

Get Latest Price

Payment Type:: L/C, T/T, PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T, PayPal

Product Description

Overview:

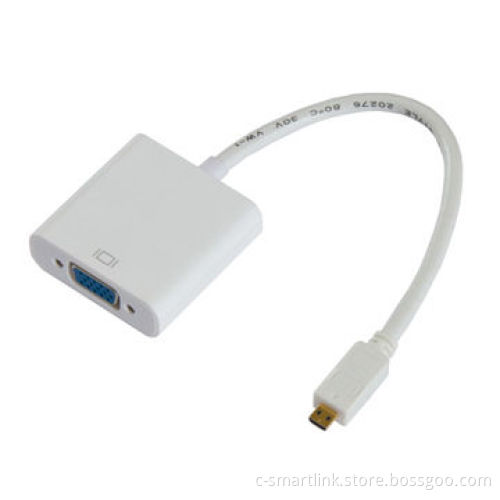

Micro HDMI - VGA adapter is the most convenient and costeffective solution for connecting your micro HDMI devices to yourVGA monitors or projectors
Micro HDMI - VGA male to female adapter features a built-inactive IC chip to achieve better compatibility

Description:

Simply plug-and-play function, choose between 'duplicate' and'extension' mode in control panel on PC or system preference onApple's Mac

Technical specification:

Input/output signal: micro HDMI® digital/VGA analog
Supported resolution: 480i/480p/576i/576p/800 x600/720i/720P/1,280 x 1,024P/1,600 x 1,200P/1,080i/1,080pixels
Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel)bandwidth for micro HDMI
Supports analog video output up to UXGA and 1,080 pixels with10-bit DAC
Vertical frequency range: 50/60Hz
HDCP compliant: HDCP 1.2
Audio output: no
Power requirements: no

Compatibility issue:

micro HDMI - VGA conversion may post compatibility problemsunder the following conditions
The micro HDMI source has different refresh rate than the VGAdisplay
The VGA display (projector, monitor or TV) does NOT support theresolutions as output from the micro HDMI source(480i/480P/576i/576P/800 x 600P/720i/720P/1,280 x 1,024P/1,600 x1,200P/1,080i/1,080P)
The mini HDMI output of source device does NOT supply 5V/500mApower

Micro HDMI - VGA adapter is the most convenient and costeffective solution for connecting your micro HDMI devices to yourVGA monitors or projectors

Micro HDMI - VGA male to female adapter features a built-inactive IC chip to achieve better compatibility

Simply plug-and-play function, choose between 'duplicate' and'extension' mode in control panel on PC or system preference onApple's Mac

Input/output signal: micro HDMI® digital/VGA analog

Supported resolution: 480i/480p/576i/576p/800 x600/720i/720P/1,280 x 1,024P/1,600 x 1,200P/1,080i/1,080pixels

Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel)bandwidth for micro HDMI

Supports analog video output up to UXGA and 1,080 pixels with10-bit DAC

Vertical frequency range: 50/60Hz

HDCP compliant: HDCP 1.2

Audio output: no

Power requirements: no

micro HDMI - VGA conversion may post compatibility problemsunder the following conditions

The micro HDMI source has different refresh rate than the VGAdisplay

The VGA display (projector, monitor or TV) does NOT support theresolutions as output from the micro HDMI source(480i/480P/576i/576P/800 x 600P/720i/720P/1,280 x 1,024P/1,600 x1,200P/1,080i/1,080P)

The mini HDMI output of source device does NOT supply 5V/500mApower
