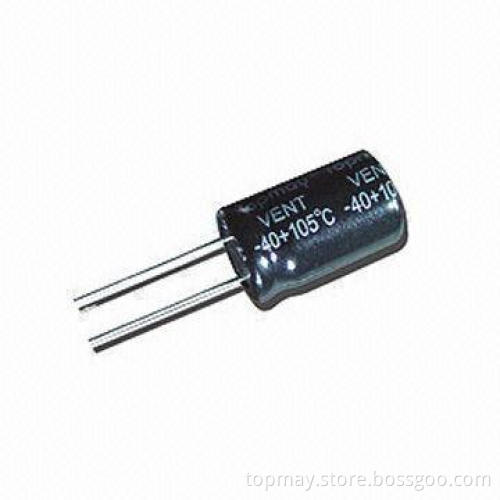

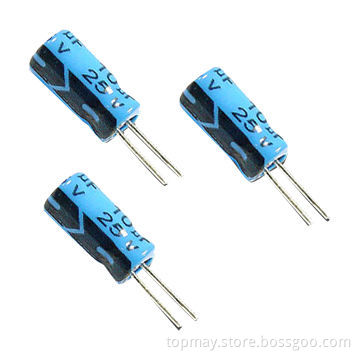

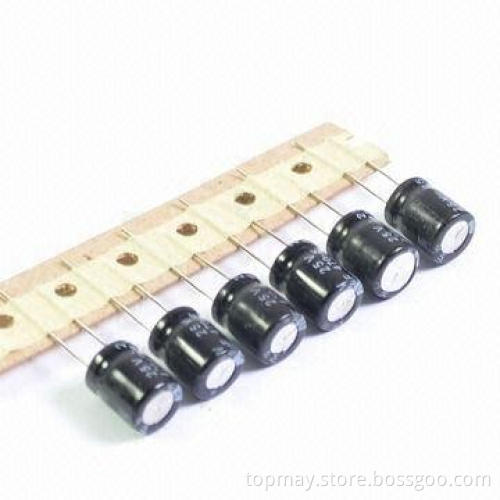

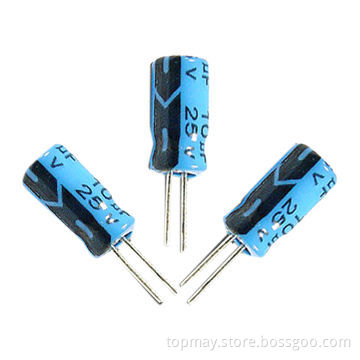

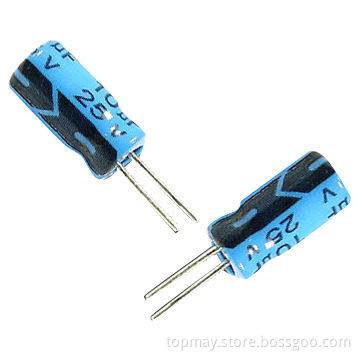

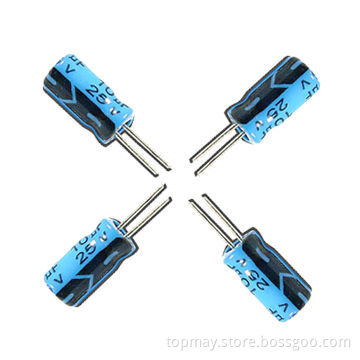

Aluminum Electrolytic Capacitor, 40 to 105° Temperature Range

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Specifications:

Operating temperature:
- ±40 to 105°C (6.3 to 100V)
- ±25 to 105°C (160 to 450V)
Rated voltage: 6.3 to 450V
Nominal capacitance: 0.1 to 15,000uF
Capacitance tolerance: ± 20% (20°C, 120Hz)
Leakage current: UR ≥100V: I ≥0.01 CR UR (uA) or 3uA (which ever is greater) 2 minutes
After UR ≥160V: I ≥0.03 CR UR +10 (uA) 2 minutes after
Dissipation factor (25°C, 120Hz):
- UR: 6.3, 10, 16, 25, 35, 50, 63, 100, 160 to 250 and 350 to 450V
- TGD: 0.22, 0.19, 0.16, 0.14, 0.12, 0.10, 0.09, 0.08, 0.15 and 0.20
Over 1,000uF, 0.02 is added to every 1,000uF increase
Load life: after applied rated voltage for 1,000 hours at + 105°C, at C ≥ ± 25% of initial value
TGD ≥ 200% of specified value and IL ≥ specified value
Shelf lifespan: after shelf for 500 hours (without voltage applied) at +105°C, then restored for 24 hours inside room
Temperature: ≥ ± 25% of initial value, TGD ≥ 200% of specified value, IL ≥ specified
Stable and reliable performances
Suitable for use in electronic circuits for coupling, decoupling bypass and filtering
Compliant with the RoHS directive
