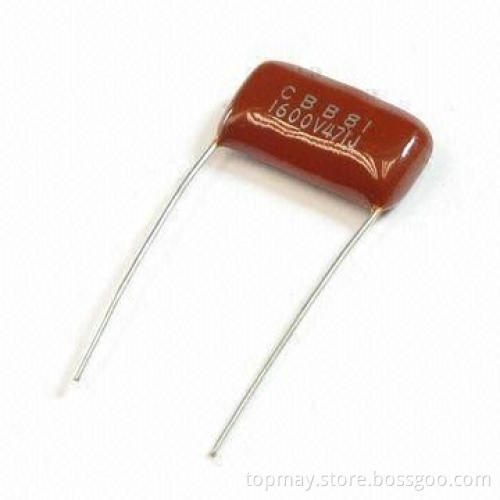

Film Capacitor, Made of Polypropylene, Suitable for High Frequency DC/AC and Pulse Circuits
  • Film Capacitor, Made of Polypropylene, Suitable for High Frequency DC/AC and Pulse Circuits
Film Capacitor, Made of Polypropylene, Suitable for High Frequency DC/AC and Pulse Circuits

Film Capacitor, Made of Polypropylene, Suitable for High Frequency DC/AC and Pulse Circuits

Get Latest Price
Payment Type:
T/T or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C at Sight
Product Description
Product Description
  • Features:
    • Material: polypropylene
    • Very low loss at high frequency
    • Suitable for high current
    • Excellent frequency and temperature characteristics
    • High insulation resistance, self-healing effect
    • Widely used in high frequency DC/AC and pulse circuits
    • It is non-inductively wound with metalized polypropylene file as the dielectric and aluminum foil as the electrode
    • With copper-clad steel leads and epoxy resin coating
  • Specifications:
    • Reference standard: 10,188 to 88GB (1EC 60384-13)
    • Climatic category: 40, 85, and 21
    • Rated voltage: 100, 200, 250, 400, 630 and 1,000V
    • Capacitance range: 0.001 to 1μF
    • Capacitance tolerance (J x K): ±5 and 10%
    • Voltage proof: 2UR (5 seconds)
    • Dissipation factor: ≤0.08% (10KHz)
    • Insulation resistances:
      • ≥25,000M (CR≤0.33°F)
      • ≥7,500s (CR>0.33°F)
  • Material: polypropylene
  • Very low loss at high frequency
  • Suitable for high current
  • Excellent frequency and temperature characteristics
  • High insulation resistance, self-healing effect
  • Widely used in high frequency DC/AC and pulse circuits
  • It is non-inductively wound with metalized polypropylene file as the dielectric and aluminum foil as the electrode
  • With copper-clad steel leads and epoxy resin coating
  • Reference standard: 10,188 to 88GB (1EC 60384-13)
  • Climatic category: 40, 85, and 21
  • Rated voltage: 100, 200, 250, 400, 630 and 1,000V
  • Capacitance range: 0.001 to 1μF
  • Capacitance tolerance (J x K): ±5 and 10%
  • Voltage proof: 2UR (5 seconds)
  • Dissipation factor: ≤0.08% (10KHz)
  • Insulation resistances:
    • ≥25,000M (CR≤0.33°F)
    • ≥7,500s (CR>0.33°F)
  • ≥25,000M (CR≤0.33°F)
  • ≥7,500s (CR>0.33°F)
