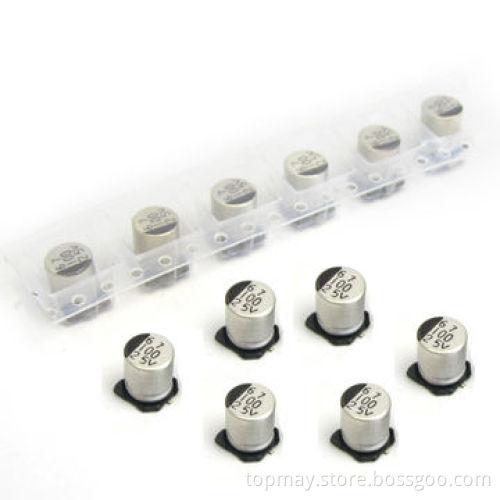

100V DC Chip Capacitors with -40 to 85°C Operating Temperature Range and 2,000-hour Lifespan

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Operating temperature range: -40 to 85°C

Rated working voltages: 4 to 100V DC

Nominal capacitance range: 0.1 to 1,500uF

Capacitance tolerance (120Hz, 20°C): ±20% (M)

Leakage current: ≤0.01CRUR or 3uA, whichever is greater(after two minutes application of rated voltage)

CR:

Dissipation factor (120Hz, 20°C):

Tand:

The capacitor shall meet the following limits:

Shelf lifespan: after storage for 1,000 hours at 85°C

Dissipation factor: not more than the initial specifiedvalue

Leakage current: not more than the initial specified value

Capacitance change: within ±10% of the initialvalue

Nominal capacitance (uF) and UR: rated voltage (V)

UR: 4, 6.3, 10, 16, 25, 35, 50, 63 and 100V

≤O8, 0.35, 0.26, 0.20, 0.16, 0.14, 0.12, 0.12, 0.12 and0.10

≥O8, 0.35, 0.28, 0.24, 0.20, 0.16, 0.14, 0.12, 0.12 and0.10

Load lifespan: after 2,000-hour application of WV at85°C

Capacitance change: ≤20% of initial value (4V within±25%)

Dissipation factor: ≤200% of initial specified value

Leakage current: ≤ initial specified value
