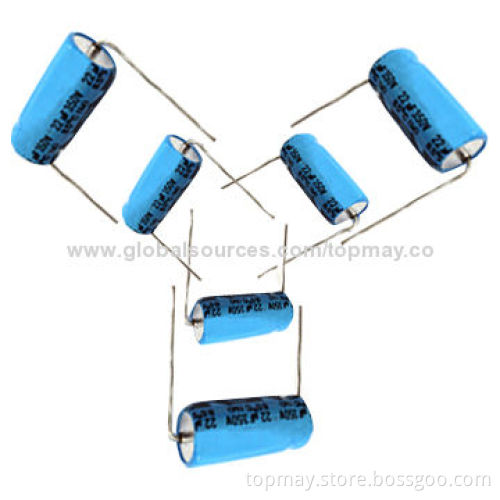

Axial Standard Aluminum Electrolytic Capacitors, Suitable for Circuits and Car RadiosNew
  • Axial Standard Aluminum Electrolytic Capacitors, Suitable for Circuits and Car RadiosNew
Axial Standard Aluminum Electrolytic Capacitors, Suitable for Circuits and Car RadiosNew

Axial Standard Aluminum Electrolytic Capacitors, Suitable for Circuits and Car RadiosNew

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Operating temperature: -40 to 105°C
    • Rated voltage: 6.3 to 100V
    • Nominal capacitance range: 0.47 to 10,000μF
    • Capacitance tolerance: ±20% (M), (120Hz, 25°C)
    • Leakage current (25°C): I ≤0.03 CV + 3μA (after five minutes application)
    • Dissipation factor (stand), (25°C, 120Hz):
      • WV: 6.3, 10, 16, 25, 35, 50, 63 and 100
      • Stand: 0.35, 0.30, 0.25, 0.25, 0.23, 0.20, 0.20 and 0.20
    • Loading lifespan: after 1,000-hour application of WV at 85°C
    • Capacitance change: ±25% of initial specified value
    • Dissipation factor: ±200% of initial specified value
    • Leakage current: ±200% of initial specified value
    • Load lifespan: 2,000 hours at 105°C
    • Axial standard typical
    • Case size: larger than 6.3mm diameter (has safety vent on rubber bun)
  • Operating temperature: -40 to 105°C
  • Rated voltage: 6.3 to 100V
  • Nominal capacitance range: 0.47 to 10,000μF
  • Capacitance tolerance: ±20% (M), (120Hz, 25°C)
  • Leakage current (25°C): I ≤0.03 CV + 3μA (after five minutes application)
  • Dissipation factor (stand), (25°C, 120Hz):
    • WV: 6.3, 10, 16, 25, 35, 50, 63 and 100
    • Stand: 0.35, 0.30, 0.25, 0.25, 0.23, 0.20, 0.20 and 0.20
  • Loading lifespan: after 1,000-hour application of WV at 85°C
  • Capacitance change: ±25% of initial specified value
  • Dissipation factor: ±200% of initial specified value
  • Leakage current: ±200% of initial specified value
  • Load lifespan: 2,000 hours at 105°C
  • Axial standard typical
  • Case size: larger than 6.3mm diameter (has safety vent on rubber bun)
  • WV: 6.3, 10, 16, 25, 35, 50, 63 and 100
  • Stand: 0.35, 0.30, 0.25, 0.25, 0.23, 0.20, 0.20 and 0.20
