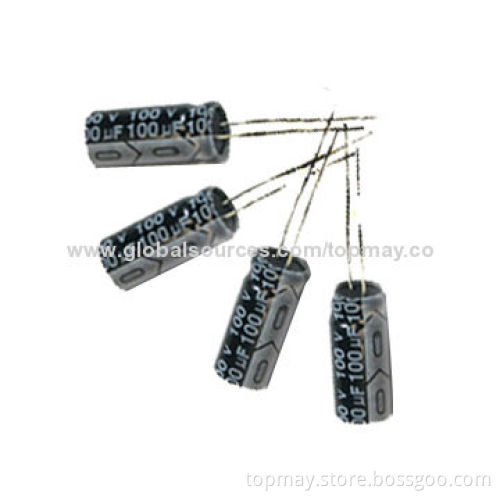

100V Aluminum Electrolytic Capacitors with -40 to 85 and -25 to 85°C Operating Temperatures

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Rated voltage range: 6.3 to 100V
Operating temperature range: -40 to 85 and -25 to 85°C
Capacitance tolerance (20C, 120Hz): ±20% (M)
Capacitance range: 0.1 to 4,700uF
After minute application of rated voltage I≤0.003CV and 3uA
Where C: nominal capacitance (uF), V: rated voltage (V)
Dissipation factor: 6.3 to 10, 16 to 25, 35, 50, 63 and 100V
Tan: 0.24, 0.20, 0.16, 0.14, 0.12 and 0.10
Capacitance change: ≤20% of the initial value
Dissipation factor: ≤200% of the specified value
Shelf lifespan: suitable for use in circuits, whose polarity is sometimes reversed or unknown
Leakage current: ≤ the specified value
Capacitance change: ≤20% of the initial value
Dissipation factor: ≤150% of the specified value
Load lifespan: 2,000 hours at 85°C
Case size: larger than 5mm diameter
With safety vents
