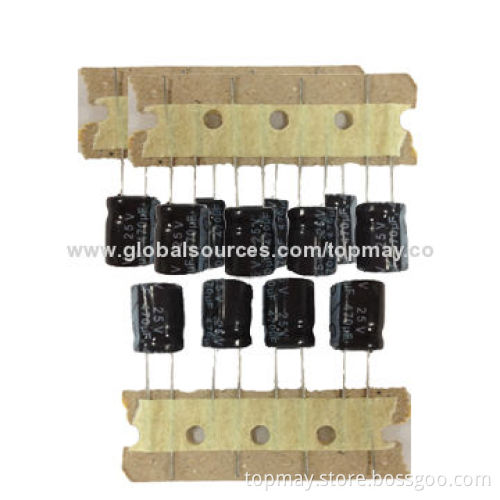

Aluminum Electrolytic Capacitors with 6.3 to 450V Rated Voltage and ±20% Tolerance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Rated voltage: 6.3 to 450V

Nominal capacitance: 0.1 to 15,000μF

Capacitance tolerance: ±20% (20°C, 120Hz)

Leakage current:

Dissipation factor:

Over 1,000uF, 0.02 is added to every 1,000uF increase

Loading lifespan: after applied rated voltage for 1,000 hour sat +105°C, at C ≥±25% of initial value

TGD ≥200% of specified value and IL ≥ specified value

Shelf lifespan: after shelf for 500 hours (without voltage applied) at 105°C, then restored for 24 hours at room

Temperature: ≥±25% of initial value, TGD ≥200% of specified value, IL ≥ specified

Stable and reliable performances

Suitable for using in electronic circuits for coupling, decoupling bypass and filtering

Certificate: RoHS

UR ≥100V: I ≥0.01 CR UR or 3uA (whichever is greater) 2 minutes

After UR ≥160V: I ≥ 0.03 CR UR +10 (uA) 2 minutes after

UR: 6.3, 10, 16, 25, 35, 50, 63, 100, 160 to 250 and 350 to450V

TGD: 0.22, 0.19, 0.16, 0.14, 0.12, 0.10, 0.09, 0.08, 0.15 and0.20V
