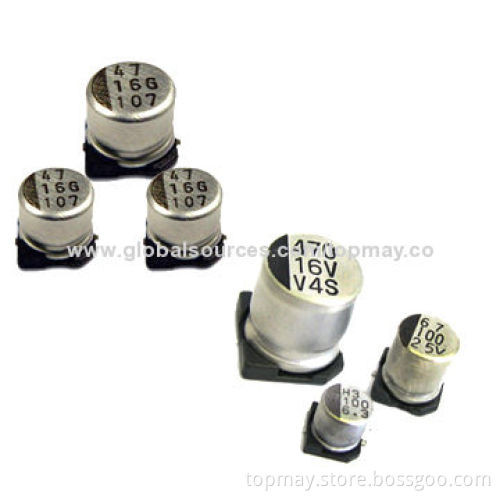

SMD Electrolytic Capacitors with 4 to 100V DC Voltage and 0.1 to 1,500uF Capacitance Range

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Capacitor shall meet the following limit:

Rated working voltage: 4 to 100V DC

Nominal capacitance range: 0.1 to 1,500μF

Capacitance tolerance (120Hz, 20°C): ±20% (M)

CR: nominal capacitance

UR: rated voltage

Dissipation factor (120Hz, 20°C): UR 4, 6.3, 10, 16, 25, 35, 50, 63 and 100V

Tand: ≤O8, 0.35, 0.26, 0.20, 0.16, 0.14, 0.12, 0.12, 0.12 and 0.10

Load lifespan: after 2,000 hours (applications of WV at 85°C)

Capacitance change: ≤±20% of initial value (4V: within ±25%)

Dissipation factor: ≤200% of initial specified value

Leakage current: ≤ (initial specified value)

Shelf lifespan: after storage for 1,000 hours at 85°C

Dissipation factor: not more than the initial specified value

Leakage current: not more than the initial specified value

Capacitance change: within ±10% of the initial value

Operating temperature range: -40 to 85°C
