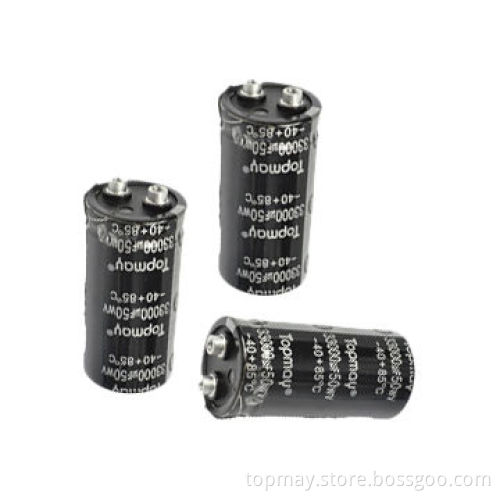

Aluminum Electrolytic Capacitor, 10 to 100V Rated Voltage, Ideal for Switching Power Supply

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Rated voltage range: 10 to 100V and 160 to 400V

Capacitance tolerance (25˚C, 120Hz): 0 to 20%

Leakage current (uA): 0.02CV or 5mA, whichever is smaller (at25˚C, after five minutes)

C: nominal capacitance (uF)

V: rated voltage (V)

Dissipation factor (25˚C and 120Hz): TTND shall not exceed the values shown in the table of standard ratings

Temperature stability (120Hz): capacitance change

10 to 100V DC: capacitance at -40˚C shall not be less than 60% of the 25˚C value

160 to 400V DC: capacitance at -25˚C shall not be less than 70% of the 25˚C value

Load and shelf lifespan (85˚C):

Suitable for switching power supplies

Operating temperature range: -40 to 85 and -25 to85˚C

Time: 2,000 hours

Leakage current: not more than specified value

Capacitance change: within ± 20% of initial value

Dissipation factor: not more than 200% of specified value

After test: UR to be applied for 60 minutes, 24 to 48 hours before measurement
