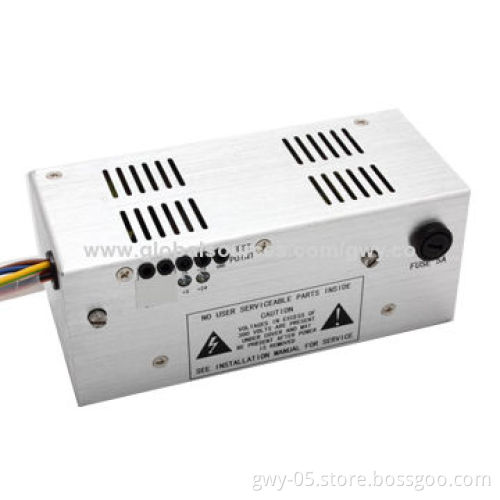

Switching Power Supply with Double Output of 24V/5V, 101W, Measures 151 x 63 x 64mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

105℃ long lifespan capacitance

Protections: short-circuit, overload, over-voltage

High-efficiency, long lifespan, high-reliability

Applied to work under harsh conditions

Low-standby power consumption to meet energy requirements

100% full load burn-in test

Input voltage/frequency range: 110-264V AC/47-63Hz

Output voltage regulation range: ±5%

Operating temperature/cooling method: -20-70℃

Overload protection: 105-150%

Over-voltage protection: 115-150%

Output start/ hold time: ton ≤1 second, Td≥ 20ms at 230V AC

Vibration: 10-500Hz, 2G 10 minutes/1 cycle, periled for 60m

Each along X, Y, Z-axes

Insulating strength: IP-OP 3KV AC, IP-FG 1.5KV AC, OP-FG 0.5KV AC, 1m

Safety standard: IEC/EN/UL/CSA 60950 Gb4943

EMC standards: EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61000-3-2, 3, EN55022 class B

Dimensions: 151x63x64mm

The features and parameters above apply to the model as follow:
