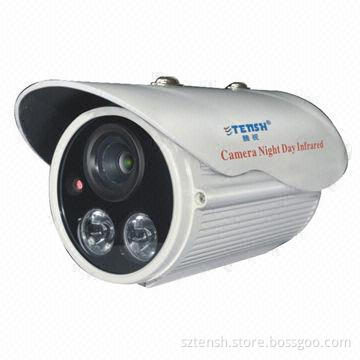

600TVL CCTV Camera 12V DC Power Supply

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Color high sensitive CCD image sensor
Shows superior image effects
The housing is made by special material
Waterproof up to IP65 level
The fourth generation of IR array illumination which can improve the photoelectric conversion efficiency
The IR LED lifetime more than five years and night vision has an effective result
Use accurate constant current source technology
LED board is designed separately from the control circuit board, to make it more stable
High-power lighting protection circuit to make the CCD board more stable
The CCD board is designed by two PCB boards, every PCB board has four layers circuit to make it much stronger
Image sensor: 1/3 color Sony CCD
Total pixels:
- PAL (H x V): 752 x 582p
- NTSC (H x V): 786 x 494p
Scanning systems: PAL/NTSC
Sync system: internal
Minimum illumination: 1 Lux F1.2/0 Lux (IR-on)
Resolution: 600TVL
Lens: MTV3.6 to 16mm (optional)
IR distance range: 0 to 30m
IR LED: ∮8/18 pieces
WBC: auto
AG: AGC
S/N ratio: ≥48dB
Exposure time: auto
Auto iris: electronic shutter
Mirror function: on/off (optional)
BLC: on/off (optional)
Video output: 1.0Vp-p/75Ω
Gamma correction: 0.45
Working temperatures: -20 to 50 degrees Celsius
Working humidity: 85% RH
Power supply: 12V DC
Power consumption: ≤450mA
Measurements: 135 x 75 x 70mm
