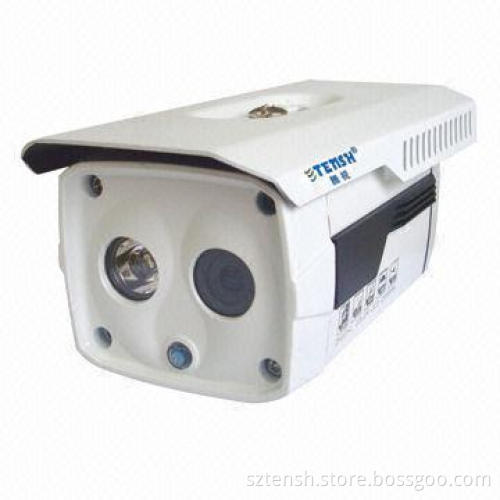

600TVL High-definition IR Camera Series with 1/3-inch Color Sony CCD Image Sensor

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

High color sensitivity CCD image sensor which shows superior image effects
High-resolution, BLC, AGC, AWB, mirror function
The housing is made of special material, waterproof up to IP65 level
The fourth generation of IR array illuminant, which can improve the photoelectric conversion efficiency
The IR LED lifetime is more than five years and night vision has an effective result
Uses accurate constant current source technology, the LED board is designed separately from the control circuit board, to make it more stable
High-power lighting protection circuit, to make the CCD board more stable
The CCD board is designed with two PCB boards, every PCB board has four layers circuit, to make it strong
Image sensor: 1/3-inch color Sony CCD
CCD total pixels (H x V):
- PAL: 752 x 582
- NTSC: 786 x 494
Scanning system: PAL/NTSC
Sync system: internal
Minimum illumination: 1 Lux, F1.2/0 Lux (IR on)
Resolution: 600TVL
Lens: MTV3.6 to 16mm (optional)
IR distance: 0 to 40m
IR LED: 1 piece
WBC: auto
AG: AGC
S/N ratio: ≥48dB
Exposure time: auto
Auto-iris: electronic shutter
Mirror function: on/off (optional)
BLC: on/off (optional)
Video output: 1.0Vp-p/75Ω
Gamma correction: 0.45
Working temperatures: 20 to 50℃
Working humidity: 85% RH
Power supply: 12V DC
Power consumption: ≤450mA
Measurement: 150 x 80 x 65mm
