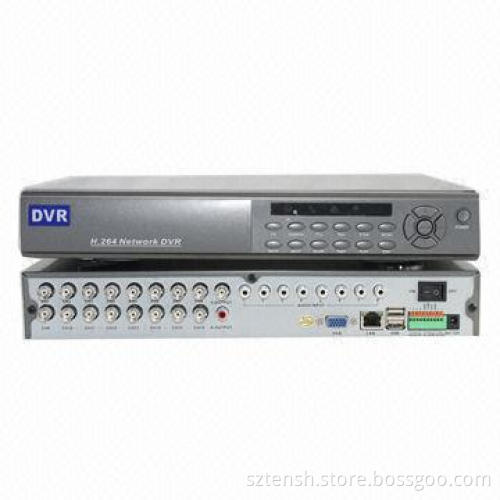

16-channel 1D1 + 15CIF Standalone DVR Manufacturer, 1,440 x 900 Pixels Resolution

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Supports VGA and CVBS synchronous output
Supports zoom any area selected by the mouse under PELCO-D/P PTZ control protocol
Supports one key to run recording function
Supports holiday recording and snapshot setup
Supports schedule snapshot, user's manual snapshot, alarm snapshot, FTP upload snapshot, playback and backup of the snapshot
Supports search, playback, backup the recording according to events
Supports playback and search pictures in local
Supports smart search in the self-defined areas in the playback of the recording
Supports 2 SATA ports
Supports maximum 16 channels CIF synchronous playback
Supports NTP (Internet timing), DHCP (automatically get IP), Email (mail service), UPNP (Universal plug-and-play function)

Specification

System main processor high-performance embedded microprocessor/GM8187
Operating system embedded Linux operating system
Languages: English, Simplified Chinese, Traditional Chinese, Brazilian, Russian, Portuguese, Spanish, Italian, Korean, French, Czech, Hebrew, German, Finnish, Bulgarian, Swedish, Romanian, Greek and more
System resources Pentaplex function: live, recording, playback, backup and remote access
Control mode: front panel, USB mouse, network, IR remote control
Video input: 16 channels, BNC (1.0Vp-p, 75Ω)
Standard: PAL/NTSC
Output: 1 TV, BNC (1.0V p-p, 75Ω), 1 VGA
Audio input: 8CH, RCA (200 to 2,800mV, 30KΩ)
Output: 1 channel, RCA (200 to 3,000mV, 5KΩ)
Display split: 1/4/9/16
Resolutions: 1,440 x 900, 1,360 x 768, 1,280 x 1,024, 1,024 x 768, 800 x 600 pixels
Tour display: supports
OSD: camera title, time, video loss, camera block, motion detection, recording
Record: video/audio compression H.264/G711
Image resolution: D1 (704 x 576/704 x 480), HD1 (704 x 288/704 x 240), CIF (352 x 288/352 x 240)
Encoding speed main stream: 1 channel to 4 D1 (1 to 5fps), 5 channels to 16 CIF (1 to 25/30fps)
Extra stream: CIF (1 to 5fps), QCIF (1 to 5fps)

Supports VGA and CVBS synchronous output

Supports zoom any area selected by the mouse under PELCO-D/P PTZ control protocol

Supports one key to run recording function

Supports holiday recording and snapshot setup

Supports schedule snapshot, user's manual snapshot, alarm snapshot, FTP upload snapshot, playback and backup of the snapshot

Supports search, playback, backup the recording according to events

Supports playback and search pictures in local

Supports smart search in the self-defined areas in the playback of the recording

Supports 2 SATA ports

Supports maximum 16 channels CIF synchronous playback

Supports NTP (Internet timing), DHCP (automatically get IP), Email (mail service), UPNP (Universal plug-and-play function)

System main processor high-performance embedded microprocessor/GM8187

Operating system embedded Linux operating system

Languages: English, Simplified Chinese, Traditional Chinese, Brazilian, Russian, Portuguese, Spanish, Italian, Korean, French, Czech, Hebrew, German, Finnish, Bulgarian, Swedish, Romanian, Greek and more

System resources Pentaplex function: live, recording, playback, backup and remote access

Control mode: front panel, USB mouse, network, IR remote control

Video input: 16 channels, BNC (1.0Vp-p, 75Ω)

Standard: PAL/NTSC

Output: 1 TV, BNC (1.0V p-p, 75Ω), 1 VGA

Audio input: 8CH, RCA (200 to 2,800mV, 30KΩ)

Output: 1 channel, RCA (200 to 3,000mV, 5KΩ)

Display split: 1/4/9/16

Resolutions: 1,440 x 900, 1,360 x 768, 1,280 x 1,024, 1,024 x 768, 800 x 600 pixels

Tour display: supports

OSD: camera title, time, video loss, camera block, motion detection, recording

Record: video/audio compression H.264/G711
