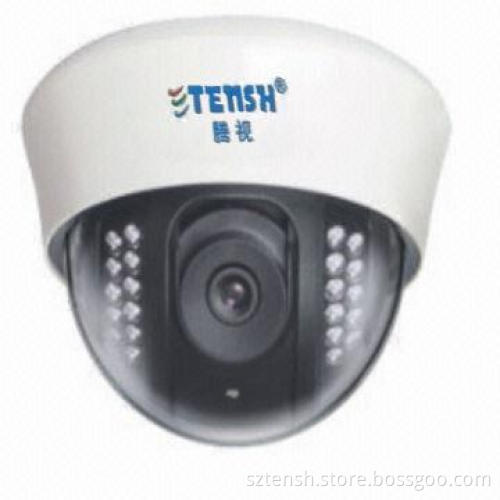

600TVL Dome High Definition IR Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Color high sensitivity CCD image sensor

Shows superior image effects

High resolution, BLC, AGC, AWB and mirror function

The housing is made by special material

Waterproof up to IP65 level

The fourth generation of IR array illumination, which can improve the photoelectric conversion efficiency

The IR LED lifetime more than five years and night vision has an effective result

Use accurate constant current source technology

LED board is designed separately from the control circuit board, to make it more stable

High power lighting protection circuit, to make the CCD board more stable

Image sensor: 1/3 color Sony CCD

CCD total pixels: P: 648(H) x 488p (V) N: 648 (H) x 488p (V)

Scanning systems: PAL/NTSC

Sync system: internal

Minimum illumination: 1 lux F1.2/0 lux (IR on)

Resolution: 600TVL

Lens: MTV 3.6 to 16mm optional

IR distance range: 0 to 25m

IR LED: 26pcs

WBC: 1/50-1/100,000sec automatic

AG: AGC

S/N ratio: ≥48dB

Exposure time: auto

Auto iris: electronic shutter

Mirror function: on/off optional

BLC: on/off optional

Video output: 1.0Vp-p/75Ω

Gamma correction: 0.45

Working temperatures: -20 to 50℃

Working humidity: 85% RH

Power supply: DC 12V

Power consumption: ≤450mA

Measurements: 75 x 94mm
