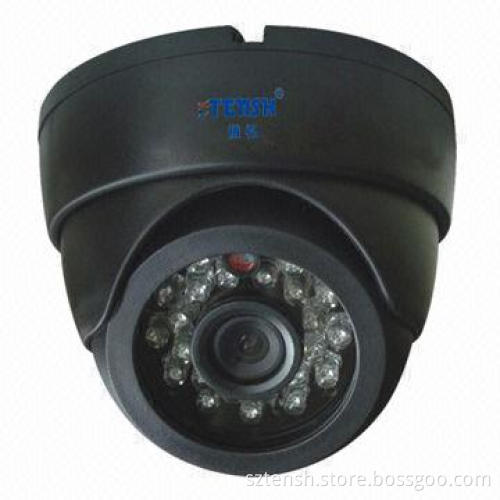

Commonly Used IR Dome Camera
  • Commonly Used IR Dome Camera
Commonly Used IR Dome Camera

Commonly Used IR Dome Camera

Get Latest Price
Payment Type:
Advance T/T or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Advance T/T or PayPal
Product Description
Product Description
  • Features:
    • Constant current circuit design
    • Monitoring 24 hours and the LED life time is up to 6,000 hours
    • The housing is made by special material, waterproof is up to IP66
    • Safe voltage and newest infrared technology, night vision has great effect in long-range distance
  • Specifications:
    • Image sensor: 1/3-inch Sony CCD
    • Effective pixels:
      PAL: 500 (H) x 582 (V)
      NTSC: 510 (H) x 494 (V)
    • Scanning area: 4.9 x 3.7mm
    • Signal system: PAL/NTSC
    • Horizontal resolution: 700TVL
    • Lens: MTV3.6-16mm
    • AGC: on/off (optional)
    • BLC: on/off (optional)
    • S/N ratio: ≥48dB
    • Minimum illumination: 0lux
    • IR LED: Ø5/23pcs
    • Electronic shutter:
      PAL:1/50-1/100,000sec
      NTSC: 1/60-1/100,000sec
    • Auto-iris lens: video/DC option
    • WBC: auto
    • Synchronous: internal
    • Video output: 1.0Vp-p/75Ω
    • Power consumption: 300mA
    • Working temperature: -10 to 50°C
    • Power supply: DC/12V
    • IR distance: 0-25m
    • Measurement: 94 x 75mm
  • Constant current circuit design
  • Monitoring 24 hours and the LED life time is up to 6,000 hours
  • The housing is made by special material, waterproof is up to IP66
  • Safe voltage and newest infrared technology, night vision has great effect in long-range distance
  • Image sensor: 1/3-inch Sony CCD
  • Effective pixels:
    PAL: 500 (H) x 582 (V)
    NTSC: 510 (H) x 494 (V)
  • Scanning area: 4.9 x 3.7mm
  • Signal system: PAL/NTSC
  • Horizontal resolution: 700TVL
  • Lens: MTV3.6-16mm
  • AGC: on/off (optional)
  • BLC: on/off (optional)
  • S/N ratio: ≥48dB
  • Minimum illumination: 0lux
  • IR LED: Ø5/23pcs
  • Electronic shutter:
    PAL:1/50-1/100,000sec
    NTSC: 1/60-1/100,000sec
  • Auto-iris lens: video/DC option
  • WBC: auto
  • Synchronous: internal
  • Video output: 1.0Vp-p/75Ω
  • Power consumption: 300mA
  • Working temperature: -10 to 50°C
  • Power supply: DC/12V
  • IR distance: 0-25m
  • Measurement: 94 x 75mm
