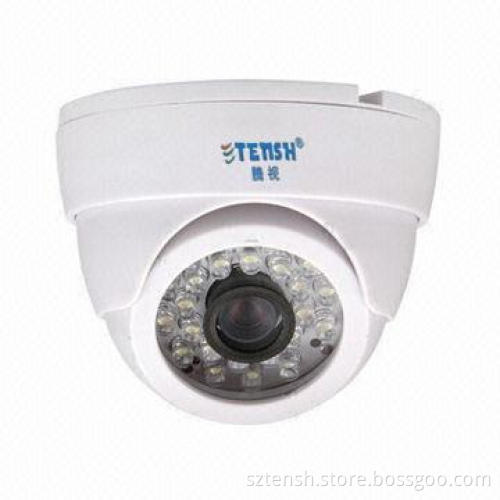

420TVL White Light Lamp CCTV Camera 0 to 15m IR Distance
  • 420TVL White Light Lamp CCTV Camera 0 to 15m IR Distance
420TVL White Light Lamp CCTV Camera 0 to 15m IR Distance

420TVL White Light Lamp CCTV Camera 0 to 15m IR Distance

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • Irradiation by light source
    • With special white light automatic modulation function, it can show the vehicle license plates figure very clearly when the car lamp is on or off
    • The housing is made by special material, waterproof up to IP65 grade
    • Uses accurate constant current source technology, the LED board is designed to separate from the control circuit board, to make it more stable
    • High-power lighting protection circuit, to make the CCD board more stable
    • The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it strong
  • Specifications
    • Image sensor: 1/3-inch color Sony CCD
    • CCD total pixels:
      • PAL (H x V): 542 x 582
      • NTSC (H x V): 542 x 582
    • Scanning system: PAL/NTSC
    • Synchronize system: internal
    • Minimum illumination: 1 Lux F1.2/0 Lux (IR on)
    • Resolution: 420TVL
    • Lens: 1 Lux F1.4/0 Lux, 4 to 16mm (optional)
    • IR distance: 0 to 15m
    • IR LEDs: ∮5/30 pieces
    • WBC: 1/50 to 1/100,000 seconds (automatic)
    • AGC: automatic
    • S/N ratio: ≥48dB
    • Exposure time: automatic
    • Automatic iris: electronic shutter
    • Mirror function: on/off (optional)
    • BLC: on/off (optional)
    • Video output: 1.0Vp-p/75Ω
    • Gamma correction: 0.45
    • Working temperatures: -20 to 50℃
    • Working humidity: 85% RH
    • Power supply: 12V DC
    • Power consumption: ≤450mA
    • Measurement: 94 x 75mm
  • Irradiation by light source
  • With special white light automatic modulation function, it can show the vehicle license plates figure very clearly when the car lamp is on or off
  • The housing is made by special material, waterproof up to IP65 grade
  • Uses accurate constant current source technology, the LED board is designed to separate from the control circuit board, to make it more stable
  • High-power lighting protection circuit, to make the CCD board more stable
  • The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it strong
  • Image sensor: 1/3-inch color Sony CCD
  • CCD total pixels:
    • PAL (H x V): 542 x 582
    • NTSC (H x V): 542 x 582
  • Scanning system: PAL/NTSC
  • Synchronize system: internal
  • Minimum illumination: 1 Lux F1.2/0 Lux (IR on)
  • Resolution: 420TVL
  • Lens: 1 Lux F1.4/0 Lux, 4 to 16mm (optional)
  • IR distance: 0 to 15m
  • IR LEDs: ∮5/30 pieces
  • WBC: 1/50 to 1/100,000 seconds (automatic)
  • AGC: automatic
  • S/N ratio: ≥48dB
  • Exposure time: automatic
  • Automatic iris: electronic shutter
  • Mirror function: on/off (optional)
  • BLC: on/off (optional)
  • Video output: 1.0Vp-p/75Ω
  • Gamma correction: 0.45
  • Working temperatures: -20 to 50℃
  • Working humidity: 85% RH
  • Power supply: 12V DC
  • Power consumption: ≤450mA
  • Measurement: 94 x 75mm
  • PAL (H x V): 542 x 582
  • NTSC (H x V): 542 x 582
