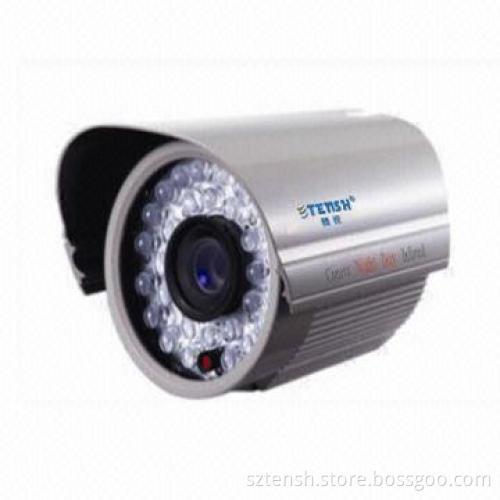

420TVL Common Use Economy IR Camera Series, 1/3-inch Color Sony CCD Image Sensor
  • 420TVL Common Use Economy IR Camera Series, 1/3-inch Color Sony CCD Image Sensor
420TVL Common Use Economy IR Camera Series, 1/3-inch Color Sony CCD Image Sensor

420TVL Common Use Economy IR Camera Series, 1/3-inch Color Sony CCD Image Sensor

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • Unique LED strengthened focusing light for 24 hours monitoring
    • LED lifespan: 60,000 hours
    • The base plate adopts high-quality, special materials and reaches IP65 grade
    • Safety prevention voltage
    • Uses the newest IR technical, night vision will be an effect in long distance
    • High-power lighting protection circuit makes the CCD board more stable
    • The CCD board is designed by two PCB boards, every PCB board has four layers of circuit, to make it work while in a strengthened state
  • Specifications：
    • Image sensor: 1/3-inch color Sony CCD
    • CCD total (H x V):
      • PAL: 542 x 582 pixels
      • NTSC: 542 x 582 pixels
    • Scanning system: PAL/NTSC
    • Sync system: internal
    • Minimum illumination: 0.001 Lux F1.2/0 Lux (IR on)
    • Resolution: 420TVL
    • Lens: 1 Lux F1.4/0 Lux 4 to 16mm (optionally)
    • IR distance range: 0 to 40m
    • IR LEDs: ∮8/32 pieces
    • WBC: 1/50 to 1/100,000 auto
    • AG: AGC
    • S/N ratio: ≥48dB
    • Exposure time: auto
    • Auto-iris: electronic shutter
    • Mirror function: on/off optionally
    • BLC: on/off optionally
    • Video output: 1.0Vp-p/75Ω
    • Gamma correction: 0.45
    • Working temperature range: -20 to -50℃
    • Working humidity: 85%RH
    • Power supply: 12V DC
    • Power consumption: ≤450mA
    • Measurement: 160 x 103 x 90mm
  • Unique LED strengthened focusing light for 24 hours monitoring
  • LED lifespan: 60,000 hours
  • The base plate adopts high-quality, special materials and reaches IP65 grade
  • Safety prevention voltage
  • Uses the newest IR technical, night vision will be an effect in long distance
  • High-power lighting protection circuit makes the CCD board more stable
  • The CCD board is designed by two PCB boards, every PCB board has four layers of circuit, to make it work while in a strengthened state
  • Image sensor: 1/3-inch color Sony CCD
  • CCD total (H x V):
    • PAL: 542 x 582 pixels
    • NTSC: 542 x 582 pixels
  • Scanning system: PAL/NTSC
  • Sync system: internal
  • Minimum illumination: 0.001 Lux F1.2/0 Lux (IR on)
  • Resolution: 420TVL
  • Lens: 1 Lux F1.4/0 Lux 4 to 16mm (optionally)
  • IR distance range: 0 to 40m
  • IR LEDs: ∮8/32 pieces
  • WBC: 1/50 to 1/100,000 auto
  • AG: AGC
  • S/N ratio: ≥48dB
  • Exposure time: auto
  • Auto-iris: electronic shutter
  • Mirror function: on/off optionally
  • BLC: on/off optionally
  • Video output: 1.0Vp-p/75Ω
  • Gamma correction: 0.45
  • Working temperature range: -20 to -50℃
  • Working humidity: 85%RH
  • Power supply: 12V DC
  • Power consumption: ≤450mA
  • Measurement: 160 x 103 x 90mm
  • PAL: 542 x 582 pixels
  • NTSC: 542 x 582 pixels
