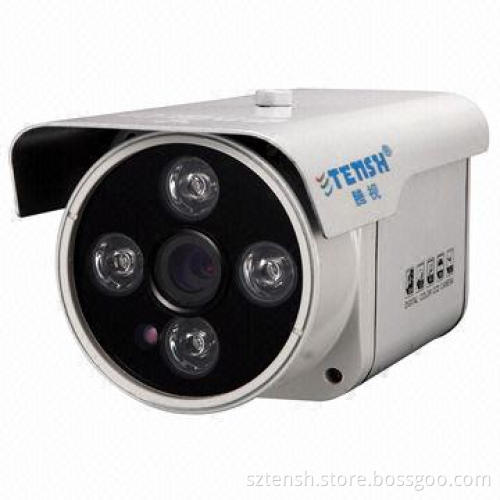

700TVL High Resolution Dual-core Camera Series with 4pcs IR LED, low power consumption

Get Latest Price

Payment Type:: Advance T/T or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advance T/T or PayPal

Product Description

Feature:

Color high sensitivity CCD image sensor, It Shows the superior image effects.
High resolution, BLC,AGC,AWB, Mirror function.
The housing is made by special material, waterproof up to IP 66 level.
The third generation of IR array illuminant,which can improve the photoelectric conversion efficiency.The IR LED lifetime more than five years and night vision has an effective result.
Use accurate Constant current source technology,The LED board is designed to separate from the control circuit board,to make it more stability.
High power lighting protection circuit, to make the CCD bord more stability.
The CCD board is designed by two PCB boards,every PCB board has four layers circuit, to make it work strengthen

Specifications:

Model: TS--S4600
Image sensor: 1/3 color Sony CCD
CCD total pixels:
- P: 976(H) x 582(V)
- N: 976(H) x 494(v)
Scanning systems: PAL/NTSC
Sync. system: Internal
Minimum illumination: 1lux F1.2/0lux(IR ON)
Resolutions: 700TVL
Lens: F1.2/16mm
IR distance: 0—120M
IR LED: 4pcs
WBC: Auto
AGC: AGC
S/N ratio: ≥48db
Exposure time: Auto
Auto iris: Electronic shutter
Mirror function: On/off optionally
BLC: On/off optionally
Video output: 1.0Vp-p/75Ω
Gamma correction: 0.45
Working temperatures: -20 - 50℃
Working humidity: 85%RH
Power supply: DC 12V
Power consumption: ≤450mA
Measurement: 260 x 125 x 112mm

Color high sensitivity CCD image sensor, It Shows the superior image effects.

High resolution, BLC,AGC,AWB, Mirror function.

The housing is made by special material, waterproof up to IP 66 level.

The third generation of IR array illuminant,which can improve the photoelectric conversion efficiency.The IR LED lifetime more than five years and night vision has an effective result.

Use accurate Constant current source technology,The LED board is designed to separate from the control circuit board,to make it more stability.

High power lighting protection circuit, to make the CCD bord more stability.

The CCD board is designed by two PCB boards,every PCB board has four layers circuit, to make it work strengthen

Model: TS--S4600

Image sensor: 1/3 color Sony CCD

CCD total pixels:
