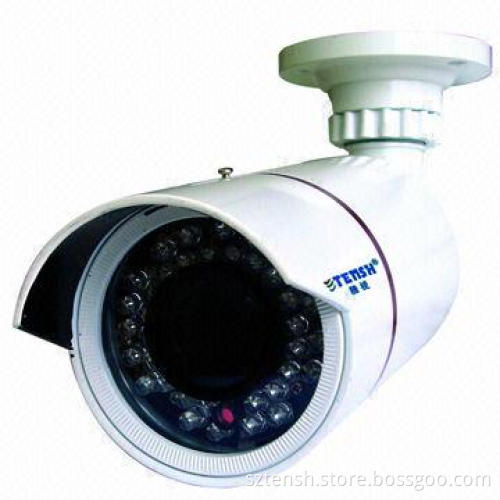

600TVL High-resolution IR Camera Series with 1/3-inch color Sony CCD Image Sensor

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advance T/T or PayPal

Product Description

Features:

Color high-sensitivity CCD image sensor, it shows the superior image effects
High-resolution, BLC, AGC, AWB, mirror function
The housing is made by special material, waterproof up to IP66 level
The third generation of IR array illuminant, which can improve the photoelectric conversion efficiency
The IR LED lifetime more than five years and night vision has an effective result
Use accurate constant current source technology
The LED board is designed to separate from the control circuit board, to make it more stability
High-power lighting protection circuit, to make the CCD board more stability
The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it work strengthen

Specifications:

Image sensor: 1/3-inch color Sony CCD
CCD total pixels:
- PAL (H x V): 752 x 582 pixels
- NTSC (H x V): 768 x 494 pixels
Sync system: internal
Minimum illumination: 1 Lux F1.2/0 Lux (IR-on)
Resolution: 600TVL
Lens: 3.6-16mm
IR distance: 0-40m
IR LEDs: ∮5-35 pieces
WBC: auto
AGC: AGC
S/N ratio: ≥48dB
Exposure time: auto
Auto-iris: electronic shutter
Mirror function: on/off optionally
BLC: on/off optionally
Video output: 1.0Vp-p/75Ω
Gamma correction: 0.45
Working temperature: -20-50℃
Working humidity: 85% RH
Power supply: 12V DC
Power consumption: ≤450mA
Measurement: 195 x 70 x 80mm
