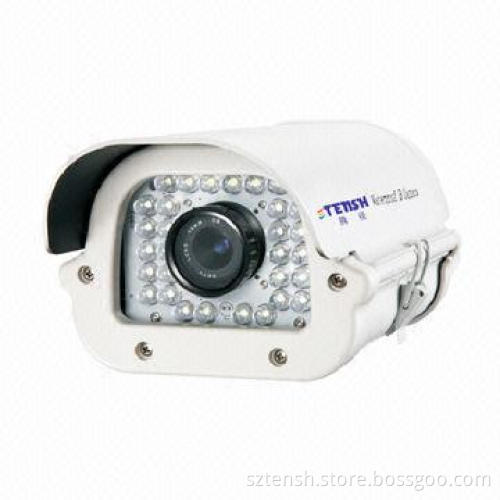

Specialized for Parking Lot Entrances and Exits White LED Camera, 220V AC Power Supply, 50m Distance

Get Latest Price

Payment Type:: Advance T/T or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advance T/T or PayPal

Product Description

Specifications:

Image sensor: 1/3 color Sony CCD
CCD total pixels:
- PAL (H x V): 500 x 582
- NTSC (H x V): 512 x 492
Scanning systems: PAL and NTSC
Sync system: internal
Minimum illumination: 1 Lux F1.6/0 Lux (white light is on)
Resolutions: 420/540TVL
Lens: F1.4/4 - 16mm (optional)
IR distance: 50m
IR LED: Ø8/30 pieces
WBC: auto
AGC: AGC
S/N ratio: ≥48dB
Exposure time: auto
Auto iris: electronic shutter
Mirror function: on/off (optional)
BLC: on/off (optional)
Video output: 1.0Vp-p/75Ω
Gamma correction: 0.45
Working temperature: -20 to 50°C
Working humidity: 85% RH
Power supply: 220V AC
Power consumption: ≤300mA
Size: 250 x 140 x 100/112 x 65 x 60mm

Features:

Vehicle license plate cameras, special highlight compensation function
White light irradiation, it's easy to distinguish the license plate at night
With special white light automatic modulation function, it also can show the vehicle license plates figure very clearly when the cars lamp is on or off
Use accurate constant current source technology, the LED board is designed to separate from the control circuit board, to make it more stability
High-power lighting protection circuit, to make the CCD board more stability
The housing is made by special material, waterproof up to IP65 level
The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it working strengthen

Image sensor: 1/3 color Sony CCD

CCD total pixels:

PAL (H x V): 500 x 582
NTSC (H x V): 512 x 492

Scanning systems: PAL and NTSC

Sync system: internal

Minimum illumination: 1 Lux F1.6/0 Lux (white light is on)

Resolutions: 420/540TVL

Lens: F1.4/4 - 16mm (optional)

IR distance: 50m

IR LED: Ø8/30 pieces

WBC: auto

AGC: AGC

S/N ratio: ≥48dB

Exposure time: auto

Auto iris: electronic shutter

Mirror function: on/off (optional)

BLC: on/off (optional)

Video output: 1.0Vp-p/75Ω

Gamma correction: 0.45

Working temperature: -20 to 50°C

Working humidity: 85% RH

Power supply: 220V AC

Power consumption: ≤300mA

Size: 250 x 140 x 100/112 x 65 x 60mm

PAL (H x V): 500 x 582

NTSC (H x V): 512 x 492

Vehicle license plate cameras, special highlight compensation function

White light irradiation, it's easy to distinguish the license plate at night

With special white light automatic modulation function, it also can show the vehicle license plates figure very clearly when the cars lamp is on or off

Use accurate constant current source technology, the LED board is designed to separate from the control circuit board, to make it more stability

High-power lighting protection circuit, to make the CCD board more stability

The housing is made by special material, waterproof up to IP65 level

The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it working strengthen
