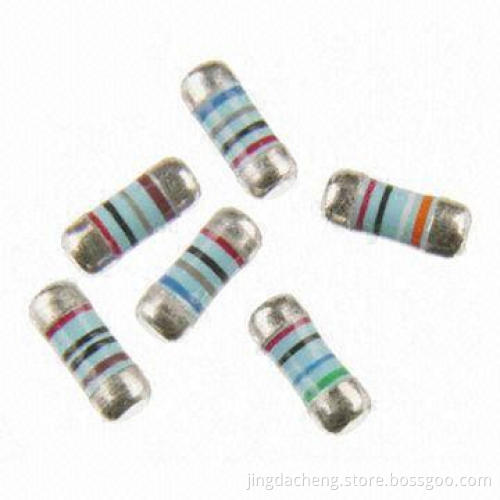

Melf Metal Film Resistor with Miniature/Ultra Miniature Size and High Precision

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Introduction:

Melf metal film resistors are manufactured using a vacuum sputtering system to deposit multiple layers of mixed metal alloys and passivative materials onto a carefully treated high grade ceramic substrate

After a helical groove has been cut in the resistive layer, SMD enabled structure

The resistors are coated with layers of blue color lacquer

General features:

SMD technology in metal film

Suitable for re-flow and wave soldering

Miniature and ultra miniature size

Higher power rating

Wide resistance range

With RoHS mark

Power rating: 1/6W, 1/4W, 0.4W, 1/2W and 0.6W, 1W

Resistance tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%, ±2% and ±5%

T.C.R.: ±15ppm/°C, ±25ppm/°C, ±50ppm/°C, ±100ppm/°C and ±200ppm/°C

MELF Carbon Film Resistors are available too.
