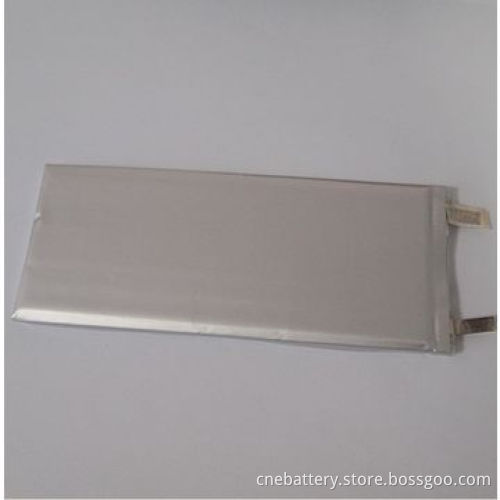

Li-polymer Battery, 3.7V/3,200mAh 1S1P, PL486787 Cell with PCM and 10K NTC, Wires, Connectors

Li-polymer Battery, 3.7V/3,200mAh 1S1P, PL486787 Cell with PCM and 10K NTC, Wires, Connectors

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Operating voltage: 3.7V
Discharge cut-off voltage: 3.0V
Charging voltage: 4.2V, ±0.036
Capacity: 3,200mAh
Cell size: 4.8 x 67 x 87mm
Constant current: 0.5C
Discharge current: 0.5C (maximum)
Charging temperature range: 0 to 45°C
Discharge temperature range: -20 to 60°C
Weight: 46g
Payment terms: TT and L/C
Lead time: 5-7 days for samples, 20days for mass production
Lifespan: after 500 cycles, 70% capacity left
Certificate: UN38.3/CE/RoHS/UL/C

Features:

Contains battery protection board to protect pack from short-circuit, over-charge, -discharge and -heating
Tags, plugs and connectors are available
Low-resistant and self-discharge
Small size and lightweight
1/3 weight of lead-acid and 65% weight of NiMH
Eco-friendly design
Long lifespan
Industrial leading packing technology ensures the cells have a precise conformance and a stable performance
Light plastic packing with excellent heat-relieving
Customized configurations are accepted
OEM and ODM orders are welcome

Operating voltage: 3.7V

Discharge cut-off voltage: 3.0V

Charging voltage: 4.2V, ±0.036

Capacity: 3,200mAh

Cell size: 4.8 x 67 x 87mm

Constant current: 0.5C

Discharge current: 0.5C (maximum)

Charging temperature range: 0 to 45°C

Discharge temperature range: -20 to 60°C

Weight: 46g

Payment terms: TT and L/C
Lead time: 5-7 days for samples, 20days for mass production
Lifespan: after 500 cycles, 70% capacity left
Certificate: UN38.3/CE/RoHS/UL/C

Contains battery protection board to protect pack from short-circuit, over-charge, -discharge and -heating

Tags, plugs and connectors are available

Low-resistant and self-discharge

Small size and lightweight

1/3 weight of lead-acid and 65% weight of NiMH

Eco-friendly design

Long lifespan

Industrial leading packing technology ensures the cells have a precise conformance and a stable performance

Light plastic packing with excellent heat-relieving

Customized configurations are accepted

OEM and ODM orders are welcome
