Product Description

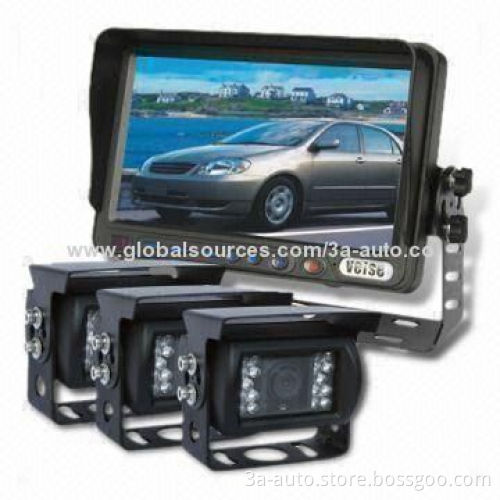

Free operating voltage: 11 to 32V DC reversing camera system

Left right rear direction makes use of color CCD backup cameras 7-inch

TFT LCD reversing monitor with removable sun visor

On-screen menu for all settings: normal/mirror view, reversing image delay, priority of reverse camera, automatic switch ON (by reverse gear and or by direction lights)

Built-in CDS sensor for illumination of the control knobs

Waterproof color CCD backup camera (DF-8083)

Image type: 1/3 color Sharp CCD

Horizontal resolution: 420TVL

Effective pixel: NTSC: 510 x 492, PAL: 500 x 582

Usable illumination: 0 Lux (8 pieces of LED for night vision 10m)

Free viewing angle: 130°

Waterproof: IP68

Shock-proof: 10g

Video output: 1.0Vp-p75Ω

Power supply: 12V DC from reversing monitor

Dimensions: 69 x 43 x 38mm (without mounting) 5-inch TFT LCD reversing monitor (SP-517) 5-inch color reversing monitor with removable sun visor

Setting up the camera image normal or mirror

With three video input, set up the priority of reverse camera

Setting up the reversing image delay time: 0 to 30 inches

Responding time less than 2-inch when reversing

Color system: PAL/NTSC

Display resolution (H x V): 960 x 234 pixels

Wide view angle (>10Ra): (up/ down): 45/65 (left/right): 65/65

Brightness: 300cd/m²

Contrast ratio: 500:1

Backlight: single

LED operating temperature: -20 to +70℃

Storage temperature: -30 to +80℃

Power supply: 11 to 32V DC

External dimensions: 150 x 118 x 23mm

Weight: 279g (Approximate)
