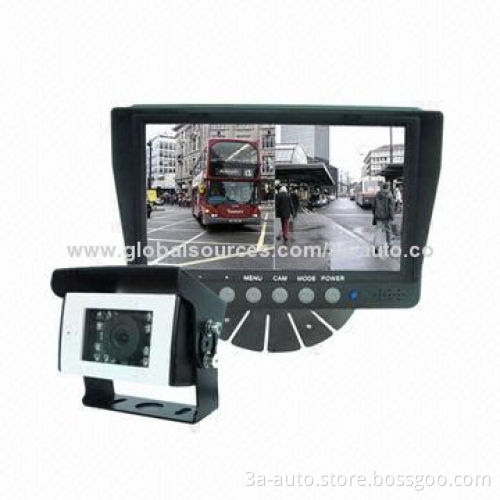

Bus rear view system with 7-inch monitor and camera for farm tractor
  • Bus rear view system with 7-inch monitor and camera for farm tractor
Bus rear view system with 7-inch monitor and camera for farm tractor

Bus rear view system with 7-inch monitor and camera for farm tractor

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • 7-inch color LCD monitor
  • TV systems: NTSC/PAL auto
  • Resolution: 480 x 3 x (RGB) x 234 pixels
  • Brightness: 300cd/?
  • Contrast: 300:1
  • Aspect ratio: 16:9
  • Viewing angle: U:50°/D:60°, R/L:70°
  • Rating: 20,000 hours
  • Features:
    • Multiple menu languages: English, Dutch, French, Portuguese, Spanish & Russian
    • With remote control
    • Monitors can be optional with loudspeaker or not, users can adjust round on the control panel or remote control?
    • Supports 2 cameras video simultaneous input?
    • Supports 1 camera audio simultaneous input
    • Separate trigger control wire on second camera
    • Monitor will automatic switch-over the image to second camera& back to the original mode when the trigger stop
    • In standby mode, monitor will turn on automatically when triggered & will switch to second camera image
    • Working voltage: 12V
    • Working current: 300mA
  • Other parameters:
    • Image device: 1/4 Sharp CCD
    • Resolution: 420TV lines
    • Effective pixels: 512 x 582 pixels/512x492 pixels
    • Sensing area: 3.6x2.7mm
    • Scanning system: 2:1 interlace
    • Sync system: Internal
    • Horizontal sync frequency: 15.625/15.734KHz
    • Vertical sync frequency: 50/60Hz
    • Minimum illumination: 0Lux (Infrared lamps on) 0.1Lux(day)/F1.2
    • Video output: 1.0vp-p, 75 Ohm
    • Gamma consumption: 0.45AGC: Auto
    • S/N ratio: Better than 48dB
    • White balance: auto
    • Electronic shutter speed range:1/60(NTSC)/1/50(PAL)~1/10,000sec
    • BLC: auto
    • Products idiomatical performance:
    • Heavy-duty camera
    • Lens: 2.5mm
    • Lens angle: 120°
    • Infrared LED light: 12pcs
    • IR distance: 15m
    • Waterproof rate: IP69
    • Shell material: aluminum alloy
    • Bracket material: iron
    • Dust-proof, waterproof, hydrochloric acid prevention, explosion prevention
  • Multiple menu languages: English, Dutch, French, Portuguese, Spanish & Russian
  • With remote control
  • Monitors can be optional with loudspeaker or not, users can adjust round on the control panel or remote control?
  • Supports 2 cameras video simultaneous input?
  • Supports 1 camera audio simultaneous input
  • Separate trigger control wire on second camera
  • Monitor will automatic switch-over the image to second camera& back to the original mode when the trigger stop
  • In standby mode, monitor will turn on automatically when triggered & will switch to second camera image
  • Working voltage: 12V
  • Working current: 300mA
  • Image device: 1/4 Sharp CCD
  • Resolution: 420TV lines
  • Effective pixels: 512 x 582 pixels/512x492 pixels
  • Sensing area: 3.6x2.7mm
  • Scanning system: 2:1 interlace
  • Sync system: Internal
  • Horizontal sync frequency: 15.625/15.734KHz
  • Vertical sync frequency: 50/60Hz
  • Minimum illumination: 0Lux (Infrared lamps on) 0.1Lux(day)/F1.2
  • Video output: 1.0vp-p, 75 Ohm
  • Gamma consumption: 0.45AGC: Auto
  • S/N ratio: Better than 48dB
  • White balance: auto
  • Electronic shutter speed range:1/60(NTSC)/1/50(PAL)~1/10,000sec
  • BLC: auto
  • Products idiomatical performance:
  • Heavy-duty camera
  • Lens: 2.5mm
  • Lens angle: 120°
  • Infrared LED light: 12pcs
  • IR distance: 15m
  • Waterproof rate: IP69
  • Shell material: aluminum alloy
  • Bracket material: iron
  • Dust-proof, waterproof, hydrochloric acid prevention, explosion prevention
