VNH2SP30 Stepper Motor Driver, L298N 30A

VNH2SP30 Stepper Motor Driver, L298N 30A

Get Latest Price

Payment Type:: L/C, T/T, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T, Western Union or PayPal

Product Description

Descriptions:

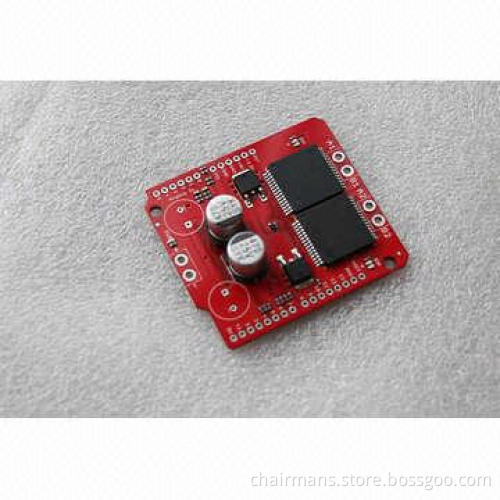

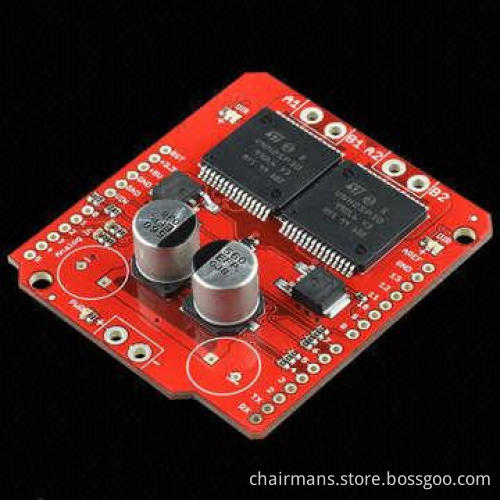

Monster motor shield
This is essentially a ramped up version of our Ardumoto motor driver shield
For this monster shield we've replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers
We've also beefed up the support circuitry so this board is capable of driving a pair of high-current motors
The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires

Note:

When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system)
However, when using the board at currents up to 6A the chips will barely become noticeably warm

Features:

Voltage max: 16V
Maximum current rating: 30A
Practical continuous current: 14A
Current sensing available to Arduino analog pin
MOSFET on-resistance: 19mΩ (per leg)
Maximum PWM frequency: 20kHz
Thermal shutdown
Undervoltage and overvoltage shutdown

Monster motor shield

This is essentially a ramped up version of our Ardumoto motor driver shield

For this monster shield we've replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers

We've also beefed up the support circuitry so this board is capable of driving a pair of high-current motors

The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires

When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system)

However, when using the board at currents up to 6A the chips will barely become noticeably warm

Voltage max: 16V

Maximum current rating: 30A

Practical continuous current: 14A

Current sensing available to Arduino analog pin

MOSFET on-resistance: 19mΩ (per leg)

Maximum PWM frequency: 20kHz

Thermal shutdown

Undervoltage and overvoltage shutdown
