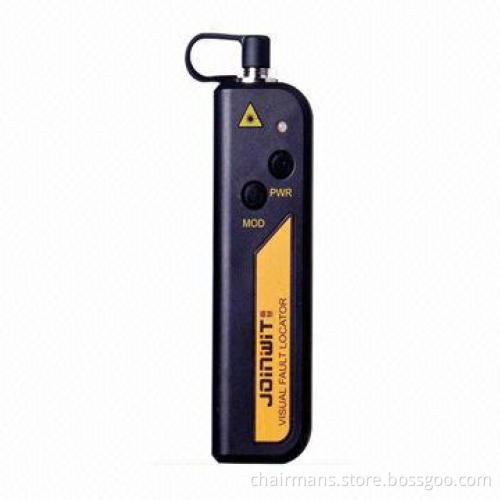

Optical Light Source, VFL, 650nm, 10mW, FP-LD, Find Faults for OTDR
  • Optical Light Source, VFL, 650nm, 10mW, FP-LD, Find Faults for OTDR
  • Optical Light Source, VFL, 650nm, 10mW, FP-LD, Find Faults for OTDR
Optical Light Source, VFL, 650nm, 10mW, FP-LD, Find Faults for OTDR
Optical Light Source, VFL, 650nm, 10mW, FP-LD, Find Faults for OTDR
Optical Light Source, VFL, 650nm, 10mW, FP-LD, Find Faults for OTDR
Optical Light Source, VFL, 650nm, 10mW, FP-LD, Find Faults for OTDR

Optical Light Source, VFL, 650nm, 10mW, FP-LD, Find Faults for OTDR

Payment Type:
L/C, T/T, Western Union or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C, T/T, Western Union or PayPal
Product Description
Product Description
  • Description:
    • The JW3105N economical VFL is an efficient and low cost basic fiber test tool, it provides a visible way to find fiber faults and identify fibers in an optical network during and after installation
    • It includes finding the breakpoint, poor connections, bending or cracking in fiber-optic cables, finding the faults of OTDR dead zone, end-to-end visual fiber identification
  • Features:
    • Constant and stable output power
    • Special laser driver circuit design, to make sure the laser output power remains a constant power level as long as in an available battery voltage
    • Low battery warning, reminds users to change the battery timely
    • Long battery lifespan (up to 40 hours with AAA batteries)
    • Operates either in CW or pulsed
    • Pocket size and lightweight, easy to use
  • Specifications:
    • Type: JW310N economical VFL
    • Central wavelength (nm): 650nm ±10nm
    • Emitter type: FP-LD
    • Output power: 10mW
    • Spectral width: ≤10nm
    • Output stability: ±0.05dB/15mins; ±0.1dB/8 hours
    • Optical connector: FC/2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests
    • Operating model: both CW and pulse (2Hz) available
    • Power supply: 2 x AAA alkaline batteries
    • Battery operating time: 40 hours (test with Panasonic LR6 AAA alkaline battery)
    • Operating temperature: -10-60°C
    • Storage temperature: -25-70°C
    • Dimensions: 100 x 30 x 18mm
  • The JW3105N economical VFL is an efficient and low cost basic fiber test tool, it provides a visible way to find fiber faults and identify fibers in an optical network during and after installation
  • It includes finding the breakpoint, poor connections, bending or cracking in fiber-optic cables, finding the faults of OTDR dead zone, end-to-end visual fiber identification
  • Constant and stable output power
  • Special laser driver circuit design, to make sure the laser output power remains a constant power level as long as in an available battery voltage
  • Low battery warning, reminds users to change the battery timely
  • Long battery lifespan (up to 40 hours with AAA batteries)
  • Operates either in CW or pulsed
  • Pocket size and lightweight, easy to use
  • Type: JW310N economical VFL
  • Central wavelength (nm): 650nm ±10nm
  • Emitter type: FP-LD
  • Output power: 10mW
  • Spectral width: ≤10nm
  • Output stability: ±0.05dB/15mins; ±0.1dB/8 hours
  • Optical connector: FC/2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests
  • Operating model: both CW and pulse (2Hz) available
  • Power supply: 2 x AAA alkaline batteries
  • Battery operating time: 40 hours (test with Panasonic LR6 AAA alkaline battery)
  • Operating temperature: -10-60°C
  • Storage temperature: -25-70°C
  • Dimensions: 100 x 30 x 18mm
