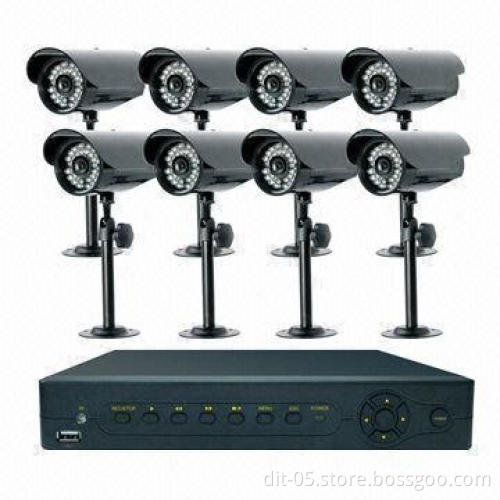

8-channel H.264 DVR Kit, Optimized 4-channel Simultaneously Playback

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

H.264 compression

8CH video input/2CH video output

2CH audio input/1CH audio output

4CH alarm input/1CH alarm output

With VGA port

Supports 8CIF real-time record

Optimized 4CH simultaneously playback

Supports 1pc SATA HDD, up to 2TB

Double level user management

Supports live view, parameter setting and copy playback video via network

With 8 CMOS cameras

Video in: 8CH composite video input 1.0V p-p, impedance of 75Ω, BNC

Video out: 2ch complex video output 1.0V p-p, impedance of 75Ω, BNC x 1, VGA x 1

Video display: 1/4 switch

Video standard: 25fps PAL, 30fps NTSC

Audio input: 2ch audio input, impedance of 600Ω, RCA

Audio output: 1ch audio output, impedance of 600Ω, RCA

Basic electricity output: linearity electricity

Record style: audio video recorded simultaneously

Audio compression: ADPCM

Picture compression: H.264

Resolution: CIF/D1 (optional) 8CIF real-time record

Audio code rate: 8 to 32Kbps

Data storage: supports mainstream SATA HDD, up to2TB

Alarm input: 4 alarm input

Alarm output: 1 alarm output

Serial interface: RS485 x 1, USB2.0 x 2

Network interface: RJ45, 10M/100M

Mouse: USB2.0

Thumb drive: USB2.0

VGA output: supports 1024 x 768/1280 x 1024/1440 x 900/1366 x 768 resolution

PC playback: playback video file

Software upgrade: supports USB firmware upgrade

Voltage input: DC 12V, 2A

Power: 15W, without HDD

Working temperature: -10 to 55℃

Camera specifications:

Image sensor: 1/4-inch CMOS
Horizontal resolution: 380TVL
Pixels:
- PAL: 628 x 582
- NTSC: 656 x 492
Horizontal resolution: 400TVL
Minimum illuminance: 0Lux (with LED）
Lens: 6mm
IR distance: up to 30ft
Video output: 1.0Vp-p 75 ohms
S/N ratio: 48dB
Operation temperature: -10 to +50℃

Image sensor: 1/4-inch CMOS

Horizontal resolution: 380TVL

Pixels:

PAL: 628 x 582
NTSC: 656 x 492

Horizontal resolution: 400TVL

Minimum illuminance: 0Lux (with LED）

Lens: 6mm

IR distance: up to 30ft

Video output: 1.0Vp-p 75 ohms

S/N ratio: 48dB

Operation temperature: -10 to +50℃

PAL: 628 x 582

NTSC: 656 x 492
