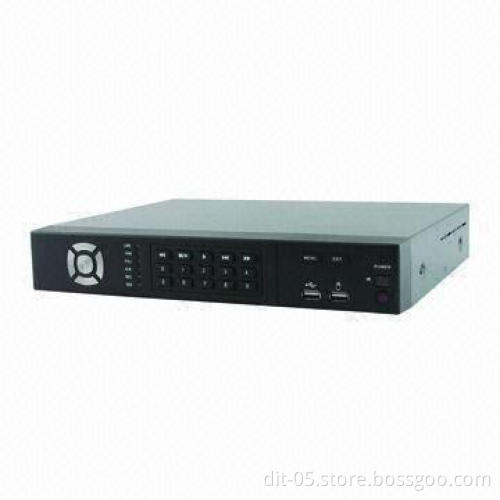

4-channel H.264 DVR with Network/All D1 Real-time/Mobile Viewing

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

H.264 compression and virus free Linux OS

Real hexaplex operation, simultaneous record, playback, mobile phone live view, backup, control and remote access

4-channel real-time playback at the same time

4D1 record and 1D1 not real-time ch and 1CH real-time playback

Supports preview, electronic amplification function

User-friendly interface: 16 bit true color, semi-transparent graphical user interface

Supports D1, HD1, CIF for recording quality

Fluent internet transmission

Hi-speed backup/upgrade/record via USB 2.0

Suitable for fields as supermarkets, chain stores, community security or villa

Video input: 4CH, 1.0Vp-p, 75Ω, BNC

Audio input: 4CH, impedance of 600Ω, RCA

Video output: 1CH, 1.0Vp-p, 75Ω, BNC

Audio output: 1CH, impedance of 600Ω, RCA

Alarm in: 4 channels

Alarm out: 1 channel

Video display: D1 pixels, 1/4 optional

Image compression: H.264

Audio compression: ADPCM

Video code rate:

CIF: 384 to 768Kbps (optional)
HD1: 512 to 1,024Kbps (optional)
D1: 896 to 1,280Kbps (optional)

Recording resolution:

NTSC: 30/720 x 480, 60/720 x 240, 120/360 x 240
PAL: 25/720 x 576, 50/720 x 288, 100/360 x 288

Video playback: supports 4 channels playback at the same time

HDD: 1 SATA, supports up to 2T

USB interface: 1pc USB2.0 for backup, 1pc USB1.1 for mouse

Motion detection:

Zone setup: PAL 13 x 10 (130), NTSC 13 x 8 (104)
VGA: 1,024 x 768, 1,280 x 720, 1,280 x 1,024, 1,440 x 900 and 1,366 x 768

Serial interface: RS485 x 1

Network interface: RJ-45, 100M

Power source: 12V DC/3A

Power consumption: 6W (without HDD)

Mobile monitoring: supports iPhone/Android/OS/iPad

Operating temperature: -10 to 50°C

Dimensions (W x L x H): 315 (L) x 230 (W) x 45mm (H)

Weight: 2.5kg

CIF: 384 to 768Kbps (optional)

HD1: 512 to 1,024Kbps (optional)

D1: 896 to 1,280Kbps (optional)

NTSC: 30/720 x 480, 60/720 x 240, 120/360 x 240

PAL: 25/720 x 576, 50/720 x 288, 100/360 x 288

Zone setup: PAL 13 x 10 (130), NTSC 13 x 8 (104)

VGA: 1,024 x 768, 1,280 x 720, 1,280 x 1,024, 1,440 x 900 and 1,366 x 768
